Circuit Inspection
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

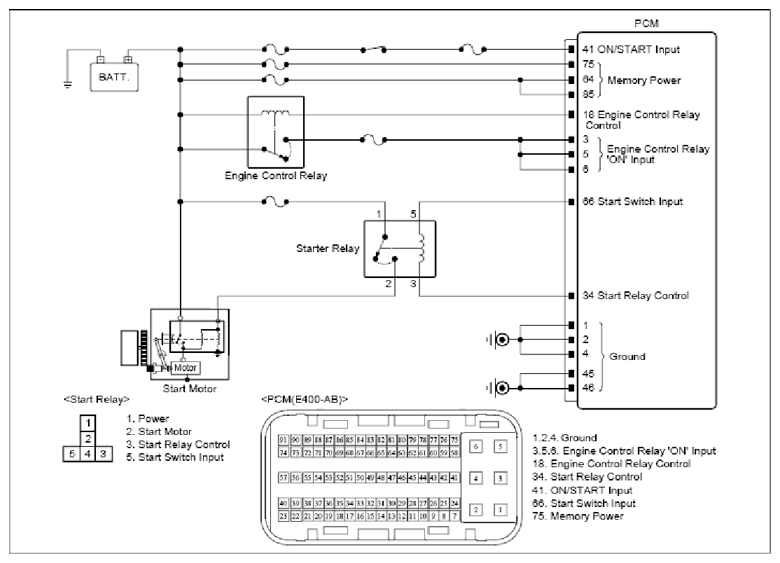

PCM harness connector | 66 (start switch input) | Chassis ground | - | ∞ (Infinite)Ω |
| 34 (start relay control) | |||||
|
Start relay harness connector | 5 (start switch input) | PCM harness connector | 66 (start switch input) | Approx. below 1Ω |
| 3 (start relay control) | 34 (start relay control) | ||||
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
