Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Select the menu "Vehicle S/W Management" with KDS.
  3. Perform "Adaptive Value BackUp & Input (ECU replacement" in "Vehicle S/W Management" with KDS.
  4. After this procedure, go to "VERIFICATION OF REPAIR " procedure.
 Figures below

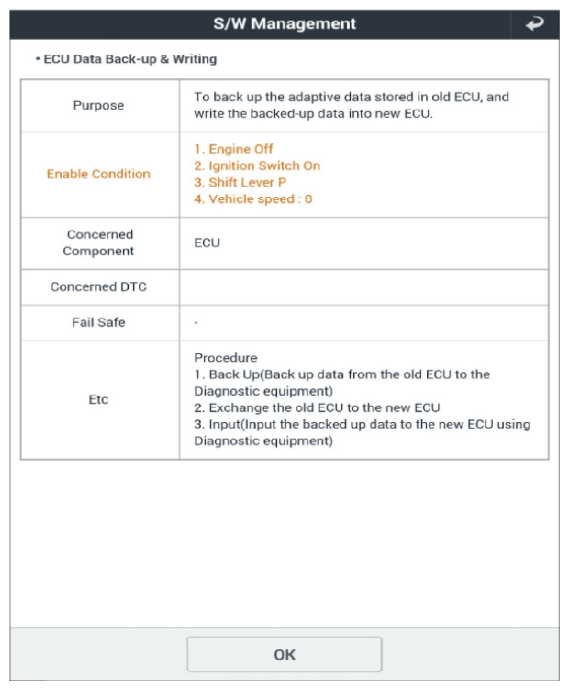

G12783848Courtesy of KIA MOTORS AMERICA, INC.
G12783849Courtesy of KIA MOTORS AMERICA, INC.

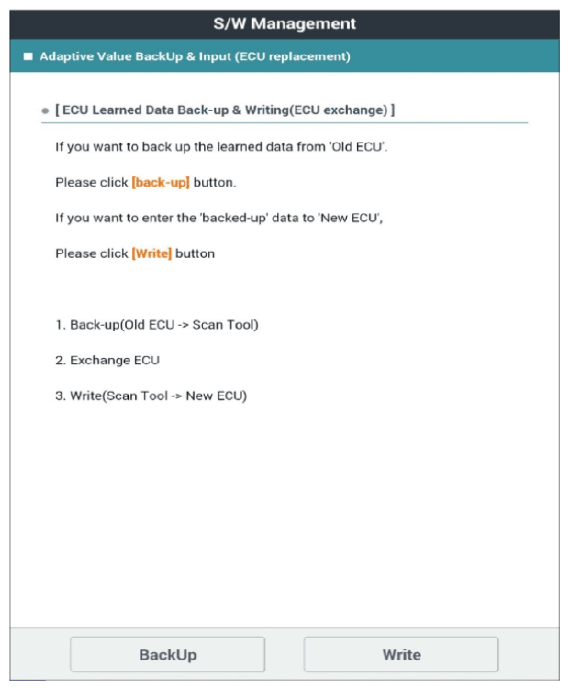

G12783850Courtesy of KIA MOTORS AMERICA, INC.
G12783851Courtesy of KIA MOTORS AMERICA, INC.

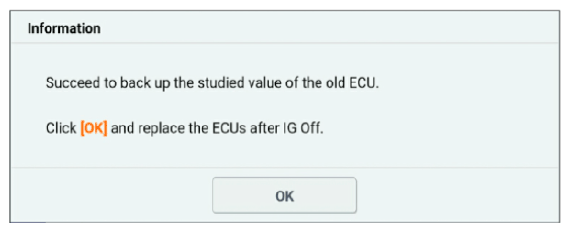

G12783852Courtesy of KIA MOTORS AMERICA, INC.

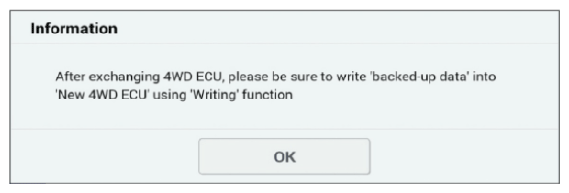

G12783853Courtesy of KIA MOTORS AMERICA, INC.
G12783854Courtesy of KIA MOTORS AMERICA, INC.

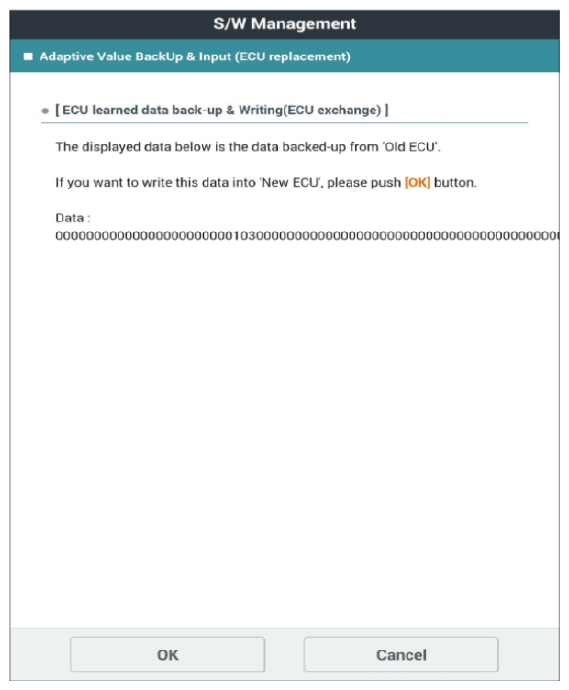

G12783855Courtesy of KIA MOTORS AMERICA, INC.

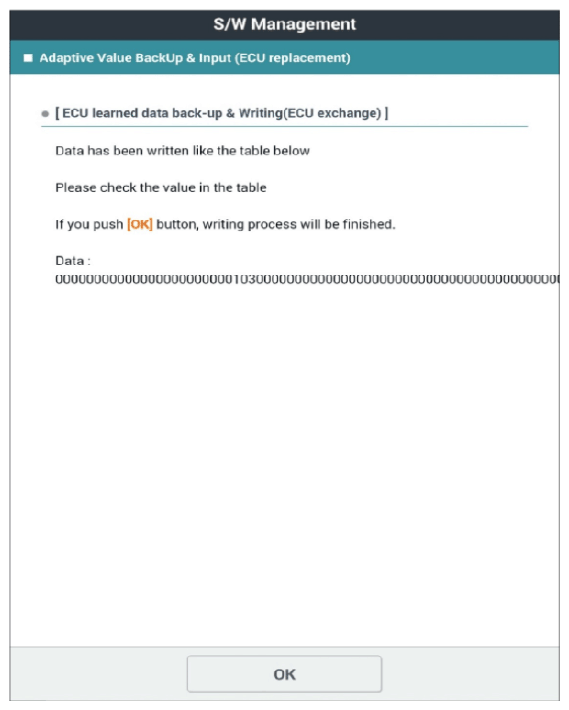

G12783856Courtesy of KIA MOTORS AMERICA, INC.
