Monitor KDS Data

WARNING: This page is about a different car, the 2020 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ignition "OFF"
  2. Refer to appropriate service information and remove necessary parts to get access to Front Center Left PAS Sensor connector.
  3. Ignition "ON"
  4. Back probe and measure signal waveform between Pin No. 5 (LIN) terminal of Front Center Left PAS sensor harness connector and chassis ground.

    Specification:  Refer to Figure below

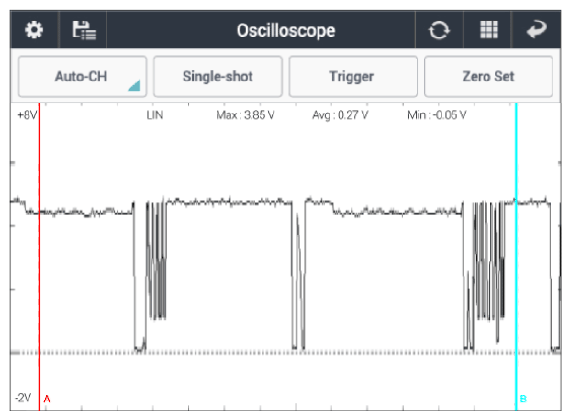

    G12839162Courtesy of KIA MOTORS AMERICA, INC.
  5. Is the measured value within specification?

    YES

    NO
