Wiring Harness Ground State Inspection

NOTE:

Ground state
Mounting bolt tightening state (Chassis)
Mounting bolt tightening state (Engine)
Check the status of ground fault by chassis paint

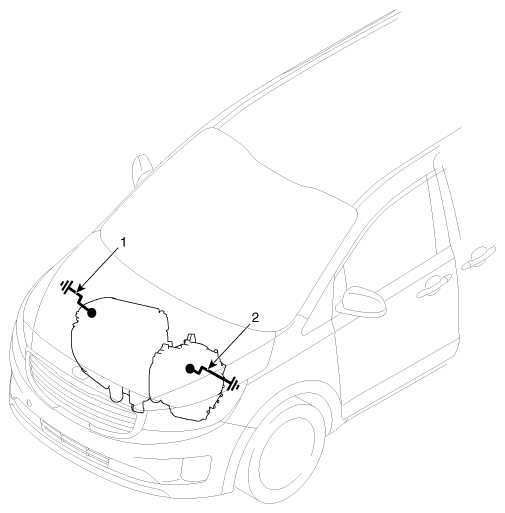

Fig 1: Check Wiring Harness Ground State

G12273499

Courtesy of KIA MOTORS AMERICA, INC.

Engine ground (Engine ↔ Chassis)
Transaxle ground (Transaxle ↔ Chassis)

NOTE: Check the ground point.

(Refer to APPROPRIATE WIRING SYSTEM DIAGRAMS)
