Component Inspection

Ignition "OFF".
Connect GDS to Data Link Connector(DLC).
Ignition "ON".
Perform appropriate service information. "Shift Control Solenoid Valve(UD/B)" in "Actuation Test" with GDS.
Monitor "Shift Control Solenoid Valve(UD/B)" parameter in "Current Data" with GDS.
Specification: Refer to Fig 1 below

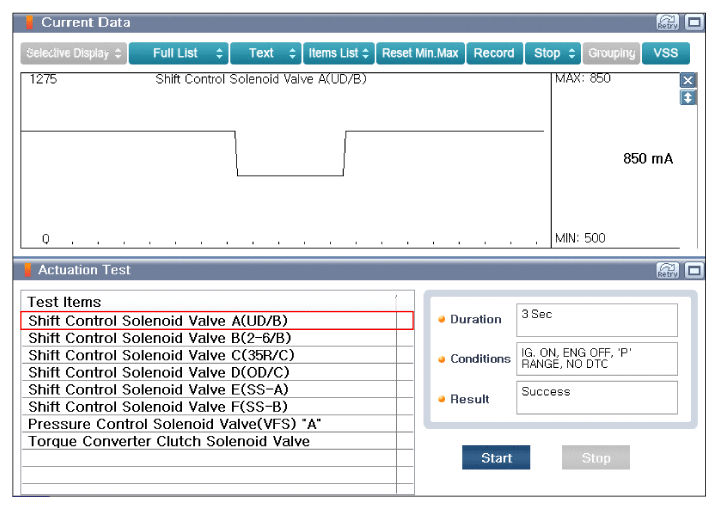

Fig 1: Screen Display - Perform Shift Control Solenoid Valve (UD/B) In Actuation Test
Courtesy of KIA MOTORS AMERICA, INC.
Is displayed parameter within specification?
YES
- Refer to REPAIR PROCEDURES and repair or replace A/T as necessary.
NO
- Carefully re-do this troubleshooting guide steps.
- If problem still occurs, repair or replace Shift Solenoid circuit or Shift Solenoid Valves and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
