Repair Procedures: Replacement

Information

• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Be careful not to bend or scratch the trim and panels.

1. Remove the luggage board (A).

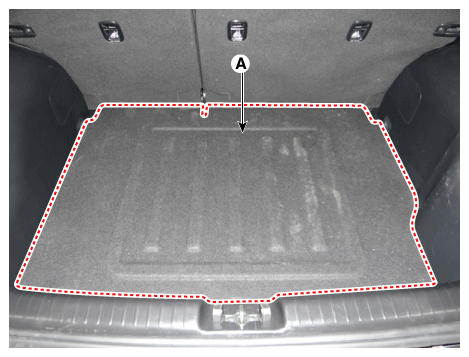

   Fig 1: Removing Luggage Board

   Courtesy of KIA MOTORS AMERICA, INC.
2. Disconnect the Liftgate weatherstrip.
3. Remove the rear transverse trim (A).

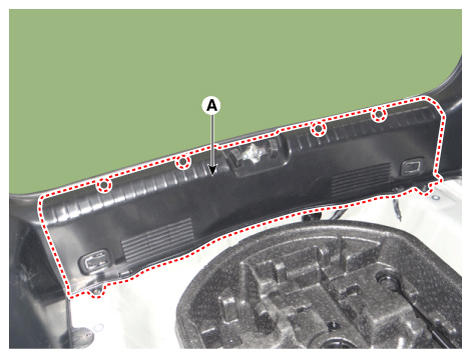

   Fig 2: Removing Rear Transverse Trim

   Courtesy of KIA MOTORS AMERICA, INC.
4. Install in the reverse order of removal.

Information

Make sure that the connector is plugged in properly.
