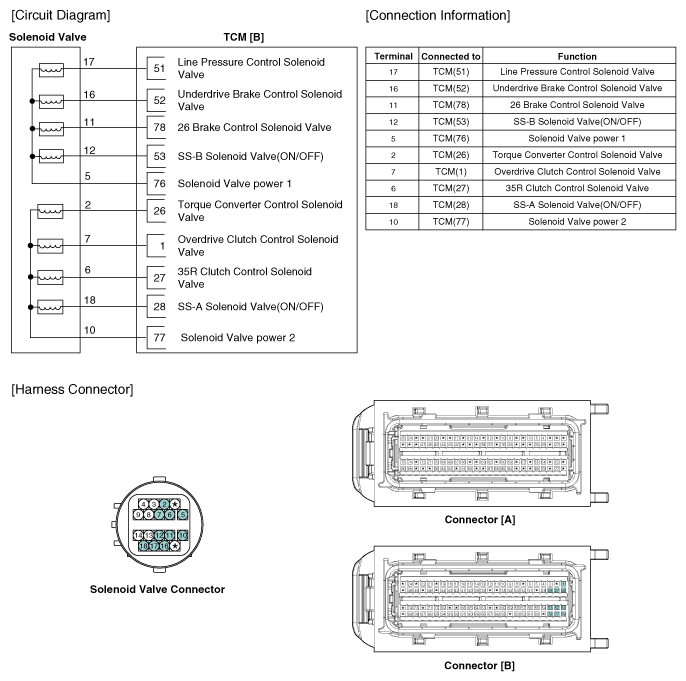

Home >> Kia >> 2016 >> Sedona SX >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle Control System >> 35R Clutch Control Solenoid Valve (35RC_VFS) >> Schematic Diagrams >> Circuit Diagram
