Monitor GDS Data

  1. Connect GDS to DLC (Data Link Cable).
  2. Warm up the engine to normal operating temperature.
  3. Check the "Current Data"  about related DTC with GDS.

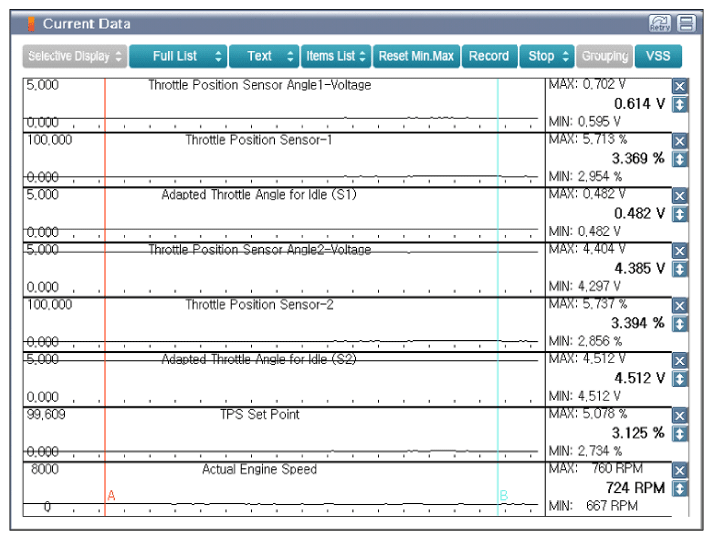

    Fig 1: Screen Display - Engine Idle After Warm Up
    G11797807Courtesy of KIA MOTORS AMERICA, INC.
    Fig 2: Screen Display - Signal Waveform Of TPS At Acceleration
    G11797808Courtesy of KIA MOTORS AMERICA, INC.
  4. Are the parameters displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification Of Vehicle Repair " procedure.

    NO
