Fuel Pressure Regulator Valve Inspection

  1. IG Key "OFF".
  2. Disconnect Fuel Pressure Regulator Valve connector.
  3. Measure resistance between power and control terminal of the High Pressure Fuel Pump. (Component Side)

    Specification:  Approx. 0.8Ω at 20°C(68 °F)

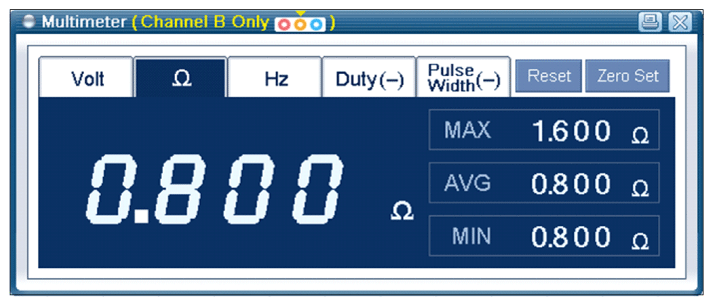

    Fig 1: Screen Display - Resistance Of FPR
    G10645892Courtesy of KIA MOTORS AMERICA, INC.
