Smart Junction Box Connector End View (I/P-D)

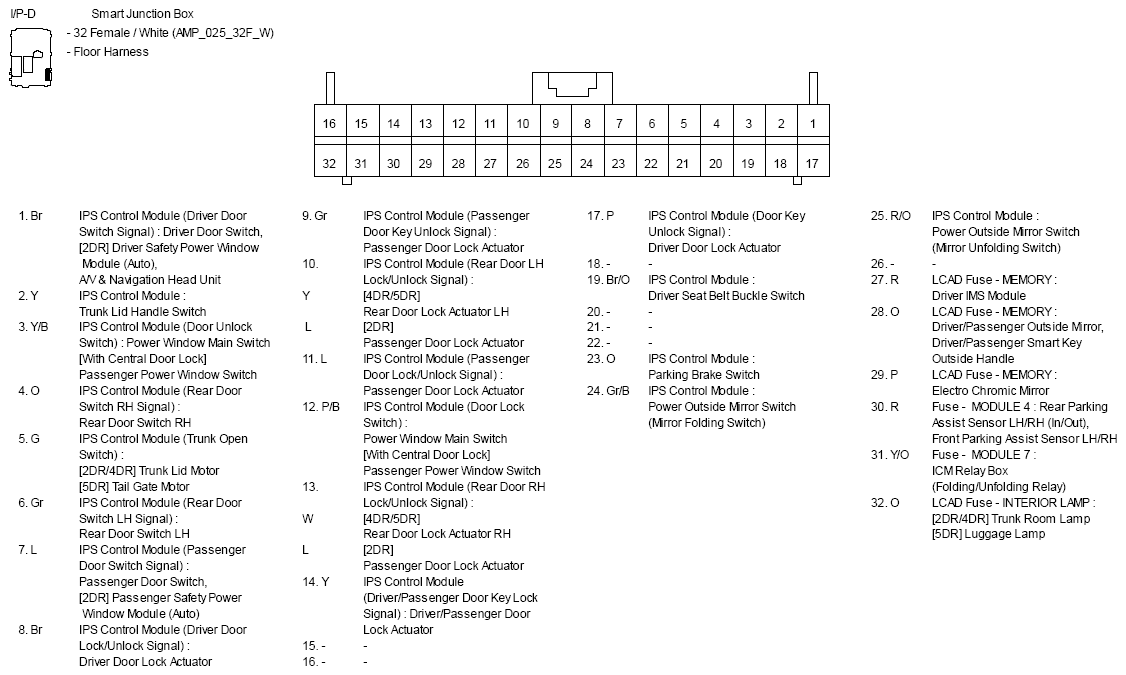

Fig 1: Smart Junction Box Connector End View (I/P-D)

G10782367

Courtesy of KIA MOTORS AMERICA, INC.
