Control Circuit Inspection

Check Short in signal circuit
1. IG KEY "OFF".
2. Disconnect PCSV connector.
3. IG KEY "ON" & ENG "OFF"
4. Measure the voltage between control terminal of PCSV harness connector and chassis ground.
  Specification: Approx 3.5V

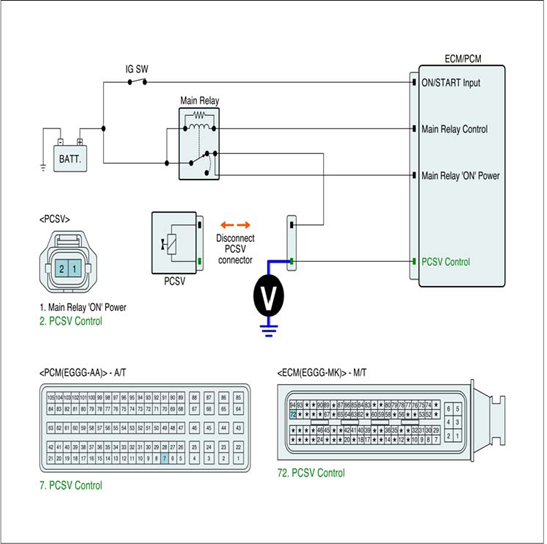

  Fig 1: Measuring Voltage Between PCSV Harness Connector Control Terminal And Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.
5. Is the measured voltage within specification?
  YES

  Go to "COMPONENT INSPECTION " procedure.

  NO

  Repair Open circuit and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
