6-SPD. A/T Adaptive Value Reset / Relearn (TRA049 REV 1)

Publication date: 2015-08-04
Reference number: TRA049 REV 1
Supersedes refnos: TRA049

6-SPD. A/T ADAPTIVE VALUE RESET / RELEARN

TECHNICAL SERVICE BULLETIN

Reference Number(s): TRA049 REV 1, Date of Issue: August 4, 2015

KIA:	All Models w/6 Spd. A/T
GROUP:	Trans/Transmission

SERVICE INFORMATION

NOTE: This bulletin has been revised to include additional information. New/revised sections of this bulletin are indicated by a black bar in the margin area.

This bulletin provides the procedures necessary to reset and relearn the adaptive values after transmission replacement or reprogramming/replacement of the PCM/TCM. After the adaptive values are reset, the transmission computer adaptive values must be relearned by driving in a precise manner to "teach" the computer the proper solenoid duty and line pressure for the new transmission/computer combination.

AFFECTED MODELS

Year	Model	Engine
2011>	Optima (TF & QF)	2.0L Theta II & 2.4L Theta II
2011>	Optima Hybrid (TF HEV)	2.4L Theta II (Hybrid)
2011>	Sorento (XMa)	2.4L Theta II & 3.5L Lambda II
2012>	Soul (AM)	1.6L Gamma GDI & 2.0L Nu
2011>	Sportage (SL)	2.0L Theta II & 2.4L Theta II
2011>	Sedona (VQ)	3.5L Lambda II
2011>	Forte (TD)	2.0L Theta II & 2.4L Theta II
2012>	Rio (UB)	1.6L Gamma GDI
2014>	Cadenza (VG)	3.3L GDI Lambda II
2015>	Sedona (YP)	3.3L GDI Lambda II
2014>	Forte (YD)	1.6L Gamma GDI & 2.0L Nu
2014>	Soul (PS)	1.6L Gamma GDI & 2.0L Nu
2016>	Sorento (UMa)	3.3L GDI Lambda II, 2.0L & 2.4L Theta II i

I. RESET PCM/TCM ADAPTIVE VALUES USING GDS/KDS/KDS

On the GDS/KDS perform an Auto VIN Function and then select A/T System.
Select "Option Treatment "
Select "Resetting Auto T/A values ".
Follow the on screen instructions and Select "Reset ".

II. RELEARN ADAPTIVE VALUES

Select Diagnosis Tab and open Current Data .

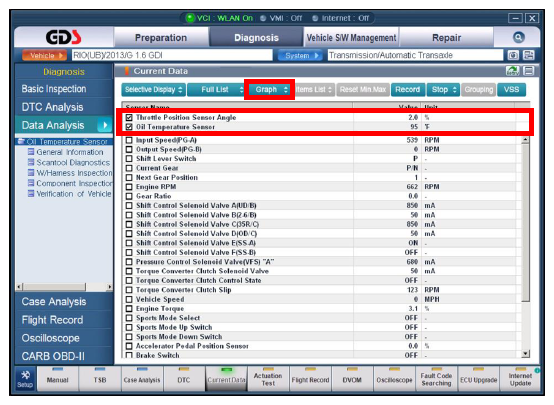

Select the boxes for Throttle Position Sensor and Oil Temperature Sensor .
Select the Graph Tab .
Use the Graph screen to monitor Throttle Position Sensor Angle and Oil Temperature Sensor data while performing the dynamic test (Step 5).
Dynamic Test
- Request an assistant to monitor the graph data on GDS/KDS (Step 4).
- Drive the vehicle until the ATF temperature is between 86°F ~ 203°F (30° ~ 95°)
- Ensure that traffic conditions are safe to conduct this portion of the Dynamic Test. Ensure that vehicle is not in Sport Mode. Accelerate from a stop in "D" ("Drive" mode), and maintain 10~20% APS while the transmission shifts through gears 1-2-3-4-5-6. Next, decelerate slowly to a stop without applying the brakes or with very little brake application, only when safe to do so .
  (Repeat this step a total of 5 times.)
NOTE:
Follow the criteria below while conducting the dynamic testing:
- Select a route that will allow you to safely perform the procedure without possible interference from traffic.
- Avoid abruptly lifting off or heavily depressing the throttle pedal while the transmission shifts through the gears.
- Avoid heavy brake application as this may result in an incorrectly performed relearn procedure.
Static Test
Safely bring vehicle to a stop. With the engine and transmission still at full operating temperature, the gear selector in Drive ("D"), confirm idle speed is below 700 RPM, then perform the following sequence:

Move shift lever to "P", then to "R"→"N" →"D"→"N"→"R"→"P", remaining in each gear for 3~5 seconds. Repeat this sequence a total of 5 times.
Confirm the transmission shifts smoothly prior to releasing the vehicle to the customer.

WARRANTY INFORMATION

NOTE: Use Op Code 95440A00 (0.6 M/H) with the transmission replacement or ECM/PCM replacement / reflash claim.
