Home >> Kia >> 2012 >> Rio L4-1.6L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> GM01

GM01

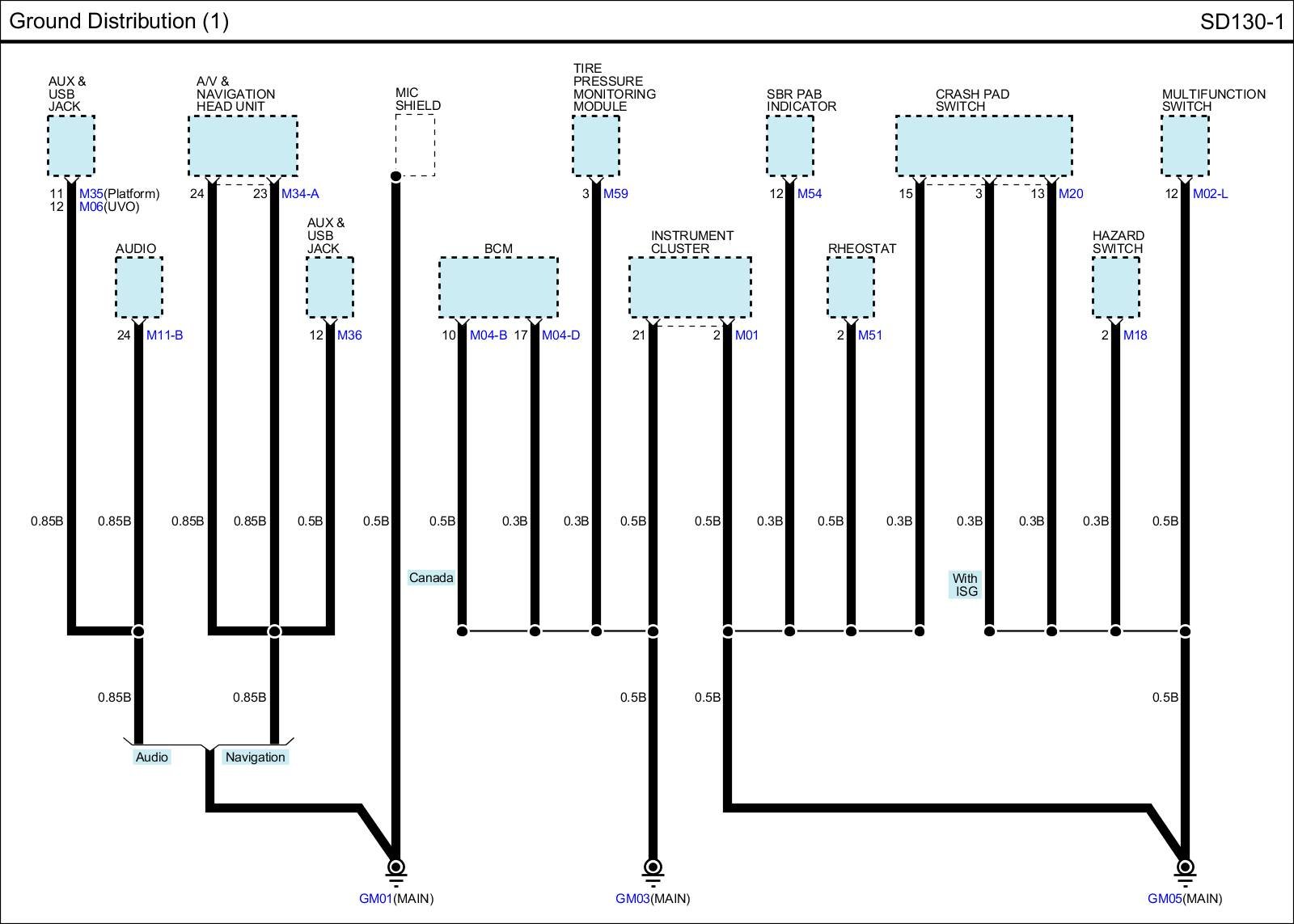

SD130-1 Ground Distribution (1):
