Forte EX, 4D Hatchback, Standard
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Audio System
>>
Audio Remote Control
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

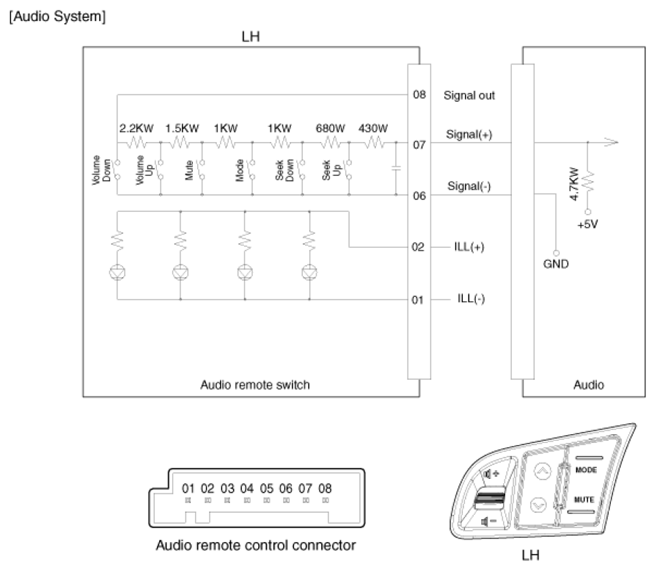

Fig 1: Audio Remote Control Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.

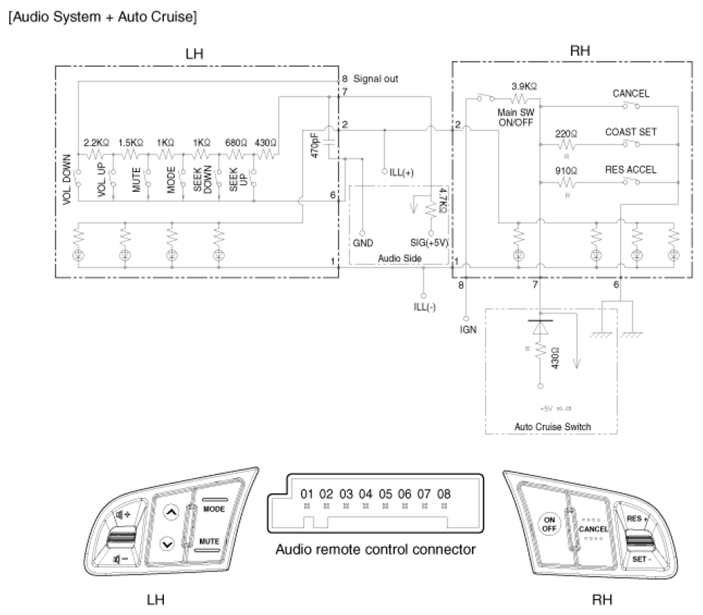

Fig 2: Audio System & Auto Cruise Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
