Repair procedures






Removal

1. Disconnect the negative(-) battery terminal.

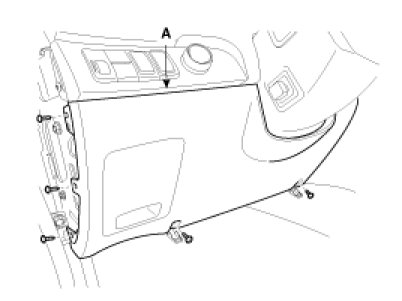

2. Remove the crash pad lower panel(A).




3. Disconnect the power distribution module connector installed on the right bracket side of steering shaft.

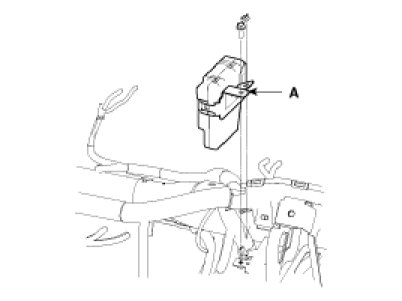

4. Remove the power distribution module(A) after loosening a bolt and nut.






Installation

1. Install the power distribution module.
2. Install the crash pad lower panel.
