Disassembly

DISASSEMBLY

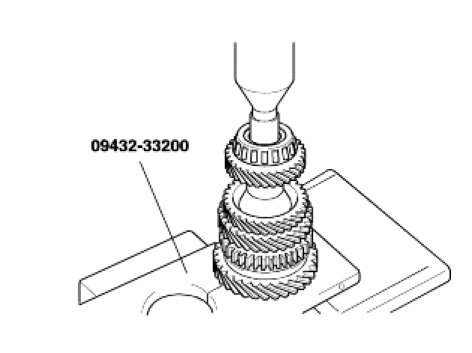

1. Remove the taper roller bearing, fourth output gear, spacer, third output gear, second speed gear assembly with second gear sleeve and needle roller bearing, first speed gear assembly with needle roller bearing and spacer and steel ball using the special tool(09432-33200).

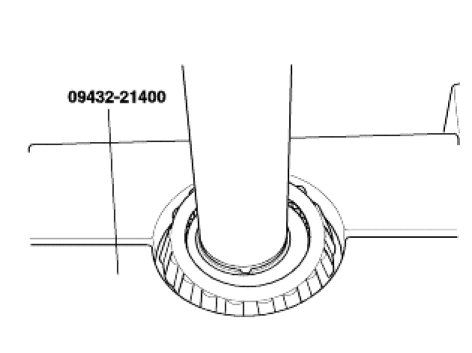

2. Remove the rear taper roller bearing using the special tool(09432-21400).

CAUTION:
Do not reuse the bearing removed from the shaft.
