1.6L Diesel Rear Fuel Delivery Line: Installation
Cleanliness cannot be overemphasized when handling or replacing diesel fuel system components. This especially includes the fuel injectors, high-pressure fuel lines and fuel injection pump. Very tight tolerances are used with these parts. Dirt contamination could cause rapid part wear and possible plugging of fuel injector nozzle tip holes. This in turn could lead to possible engine misfire. Always wash/clean any fuel system component thoroughly before disassembly and then air dry. Cap or cover any open part after disassembly. Before assembly, examine each part for dirt, grease or other contaminants and clean if necessary. When installing new parts, lubricate them with clean engine oil or clean diesel fuel only. DO NOT use any lubricating or sliding agents that contain water.

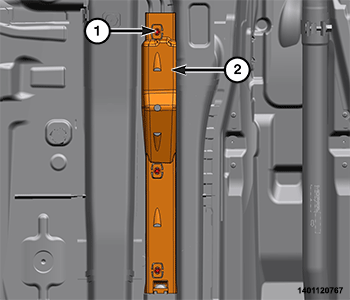

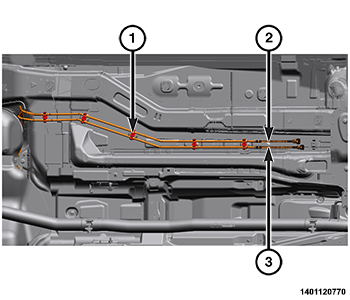

- Install the rear fuel delivery tube (1) to the vehicle underbody.

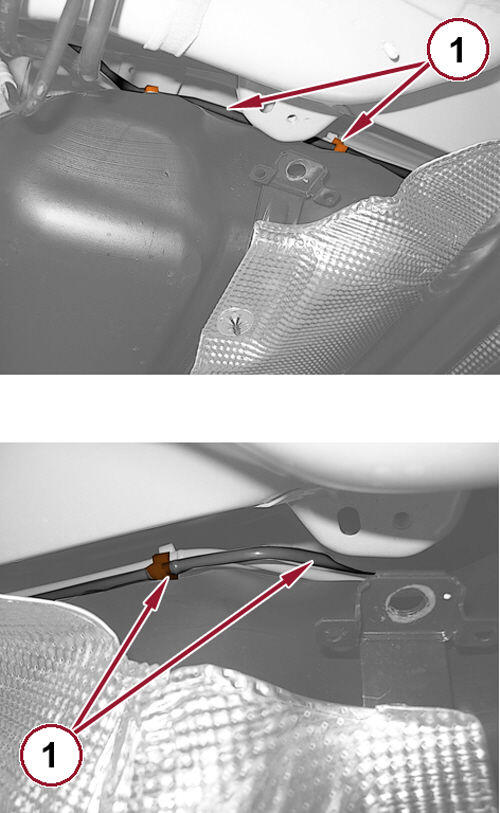

- Engage the rear fuel supply line (2) with the retaining clips (1).

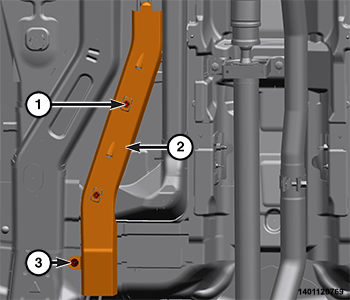

- Install the rear fuel line shield (2) and securely tighten the nut (3) and bolts (1).

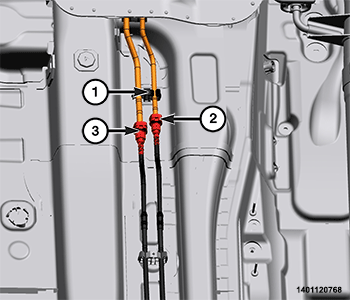

- Connect the rear fuel supply line quick coupling (3).

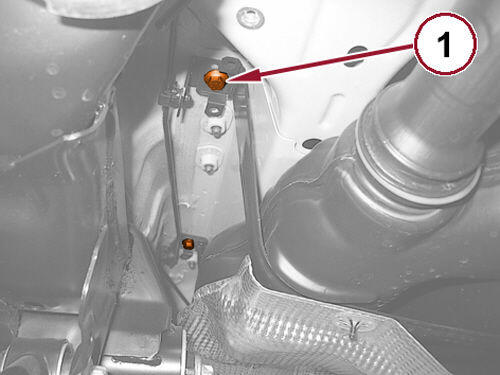

- Lift the fuel tank back into position then install the rear tank mounting brackets bolts (1) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS DIESEL
.
- Install front tank mounting brackets bolts (1) and tighten the to the proper specification. Refer to TORQUE SPECIFICATIONS DIESEL
.

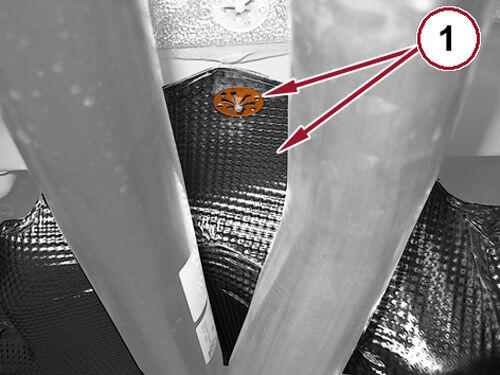

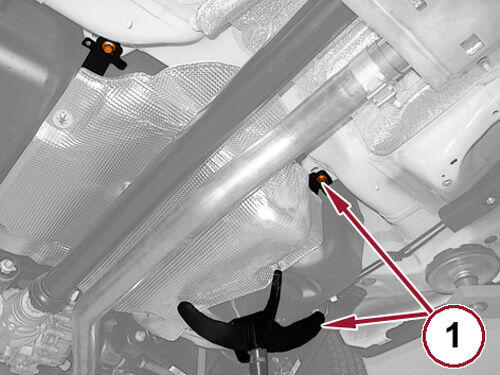

- Install the fuel tank heat shield and securely tighten the serrated retainer washer (1).
- Install the fuel line shield and securely tighten the bolts (1).
- Remove the support and lower the vehicle.

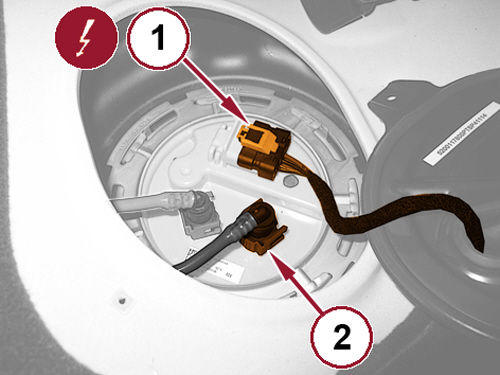

- Lift the floor covering to access and connect the rear fuel delivery line quick coupling (2).
- Connect the fuel pump module wire harness connector (1).

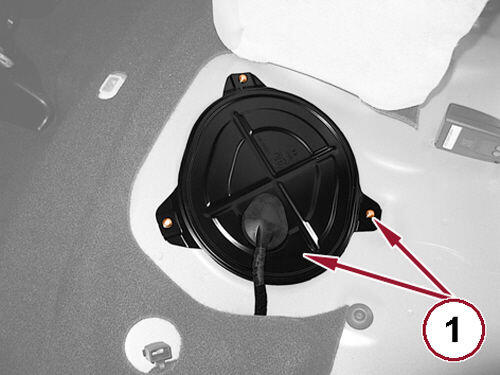

- Install the fuel pump access cover to the floor panel and securely tighten the bolts (1).
- Install the rear seat cushion into the vehicle. Refer to SEAT CUSHION, REMOVAL AND INSTALLATION .
