Sensor, Mass Airflow (MAF): Removal: Removal

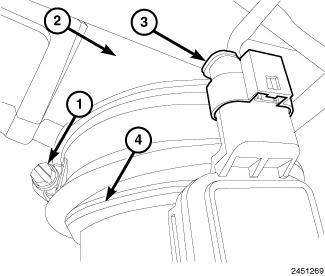

Fig 1: Mass Air Flow Sensor, Harness Connector, Turbocharger Inlet Tube & Clamp

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect the negative battery cable.
2. Disconnect the Mass Air Flow (MAF) sensor wire harness connector (3).
3. Loosen clamp (1) and disconnect the turbocharger inlet tube (2) from the MAF sensor (4).

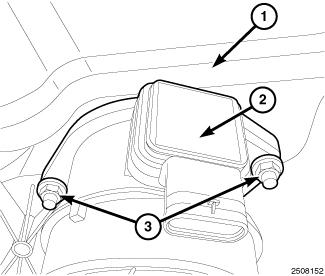

   Fig 2: Air Cleaner Housing, MAF Sensor & Nuts

   Courtesy of CHRYSLER GROUP, LLC
4. Remove nuts (3) and the MAF sensor (2) from the air cleaner housing (1).
