Pulley, Idler: Installation: 2.8L

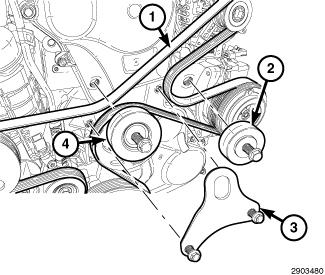

Fig 1: Drive Belt, Lifting Bracket, Idler Pulley & Bolt
GC0148194Courtesy of CHRYSLER GROUP, LLC
  1. Install lower idler pulley (2). Tighten bolt to 45 N.m (33 ft. lbs.).
  2. Install the upper idler pulley (4). Tighten bolt to 45 N.m (33 ft. lbs.).
  3. Install the serpentine belt (1). Refer to BELT, SERPENTINE, INSTALLATION .
  4. Connect the negative battery cable.
