3.0L Diesel Coolant Bottle - Installation

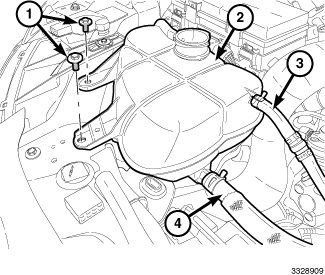

Fig 1: Coolant Bottle, Hoses & Fasteners
GC0146725Courtesy of CHRYSLER GROUP, LLC
  1. Position coolant recovery container (2) into position.
  2. Install the coolant supply hose (4).
  3. Install mounting bolts (1). Tighten to 10 N.m (89 in. lbs.).
  4. Install the coolant return hose (3)
  5. Fill cooling system. Refer to STANDARD PROCEDURE .
  6. Install coolant recovery container pressure cap.
