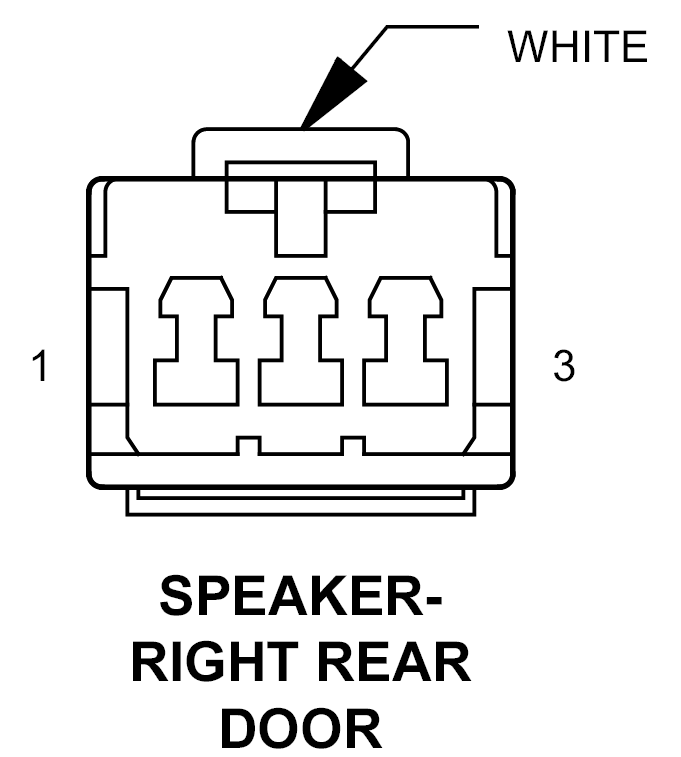

Right Rear Door Speaker Connector End View

SPEAKER-RIGHT REAR DOOR - WHITE 3-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	X206 18DG/LG	AMPLIFIED RIGHT REAR DOOR SPEAKER (+)
2	-	-
3	X296 18LG/GY	AMPLIFIED RIGHT REAR DOOR SPEAKER (-)
