Fluid - M/T: Service and Repair

DRAIN AND FILL




1. With vehicle in neutral, position vehicle on hoist.

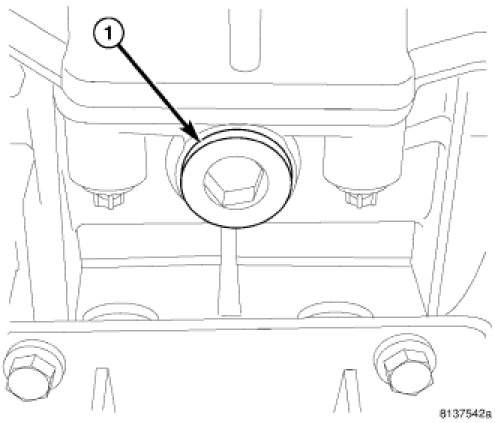

2. Remove drain plug (1) and drain fluid.

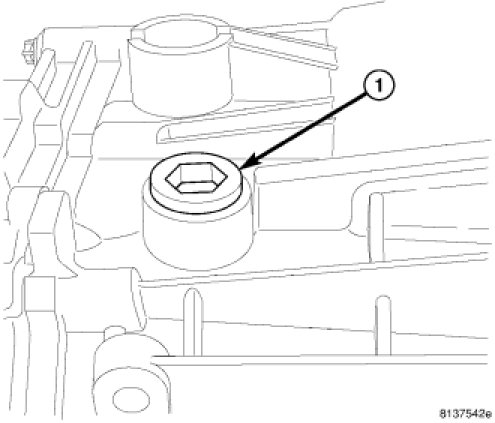

3. Install drain plug and remove fill plug (1).
4. Fill transmission with 1.5 L (3.17 pts.) of Mopar(R) Manual Transmission Lubricant MS-9224 or to the bottom of the fill plug (1) hole.
