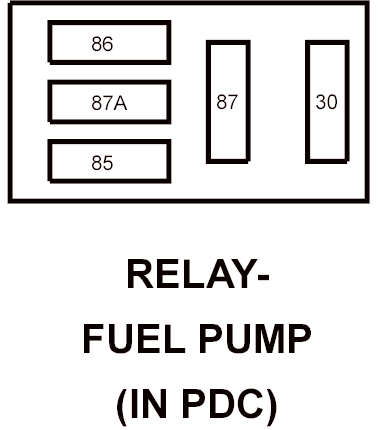

Fuel Pump Relay (In Power Distribution Center) Connector End View
RELAY-FUEL PUMP (IN PDC)
| CAV | CIRCUIT | FUNCTION |
| 30 | A129 18RD/BR | FUSED B(+) (DIESEL) |
| 30 | INTERNAL | FUSED B(+) (GAS) |
| 85 | K391 20BR/YL | FUEL PUMP RELAY CONTROL (DIESEL) |
| 85 | K31 20BR | FUEL PUMP RELAY CONTROL (GAS) |
| 86 | K347 20BR/YL | FUSED ASD RELAY OUTPUT (DIESEL) |
| 86 | F1 20PK/WT | FUSED IGNITION SWITCH OUTPUT (RUN-START) (GAS) |
| 87 | K392 18BR/LB | FUEL PUMP RELAY OUTPUT (DIESEL) |
| 87 | N1 18DG/OR | FUEL PUMP RELAY OUTPUT (GAS) |
| 87A | - | - |
