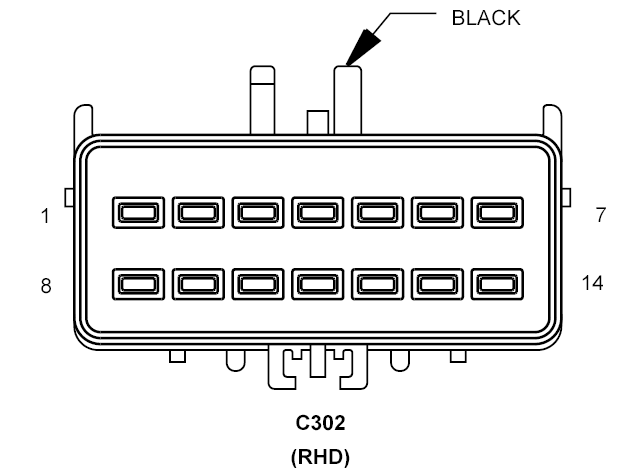

Inline (RHD) Connector End View (C302)
C302 - BLACK 14 WAY (RHD) FEMALE
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z960 20BK/LB |
GROUND |
| 2 |
- |
- |
| 3 |
- |
- |
| 4 |
Q16 14OR/TN |
MASTER WINDOW SWITCH PASSENGER (UP) |
| 5 |
Q26 14OR/BK |
MASTER WINDOW SWITCH PASSENGER (DOWN) |
| 6 |
Q15 14OR/RD |
WINDOW LOCK OUT SWITCH OUTPUT |
| 7 |
- |
- |
| 8 |
- |
- |
| 9 |
- |
- |
| 10 |
- |
- |
| 11 |
- |
- |
| 12 |
- |
- |
| 13 |
- |
- |
| 14 |
- |
- |

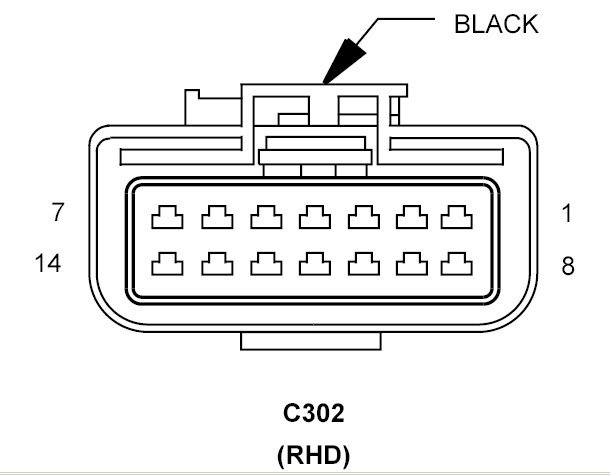

C302 - BLACK 14 WAY (RHD) MALE
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z960 20BK/LB |
GROUND |
| 2 |
- |
- |
| 3 |
- |
- |
| 4 |
Q16 14OR/TN |
MASTER WINDOW SWITCH PASSENGER (UP) |
| 5 |
Q26 14OR/GY |
MASTER WINDOW SWITCH PASSENGER (DOWN) |
| 6 |
Q15 14OR/RD |
WINDOW LOCK OUT SWITCH OUTPUT |
| 7 |
- |
- |
| 8 |
- |
- |
| 9 |
- |
- |
| 10 |
- |
- |
| 11 |
- |
- |
| 12 |
- |
- |
| 13 |
- |
- |
| 14 |
- |
- |
