Fuel Injector 3 (Gas) Connector End View

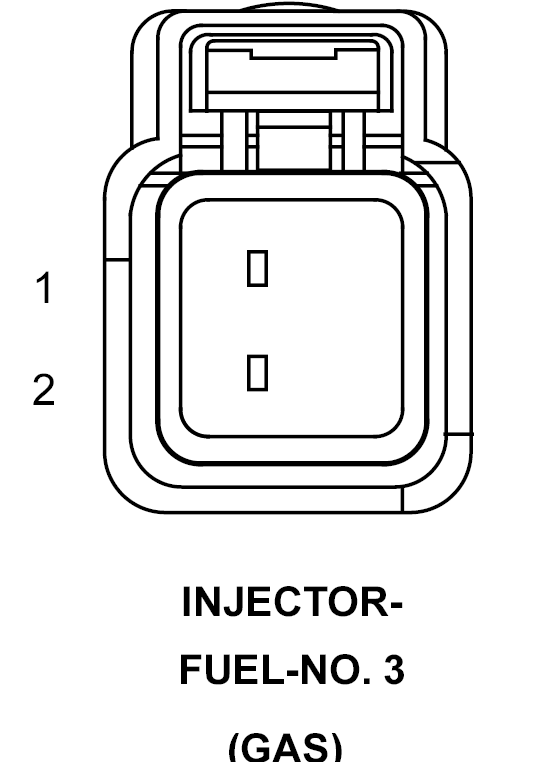

INJECTOR-FUEL-NO. 3 - 2-WAY(GAS)

GXK780159Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K13 16BR/LB INJECTOR CONTROL NO. 3
2 F42 16DG/LG FUSED ASD RELAY OUTPUT
