Right Front Speaker Connector End View

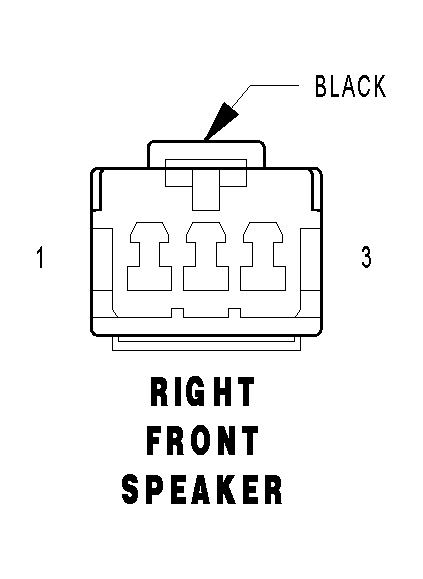

RIGHT FRONT SPEAKER - BLACK 3 WAY

GCTJ580257Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 X54 18GY RIGHT FRONT SPEAKER (+)
2 - -
3 X56 18GY/BR RIGHT FRONT SPEAKER (-)
