Half Door

WINDOW

REMOVAL

1. Open the door.

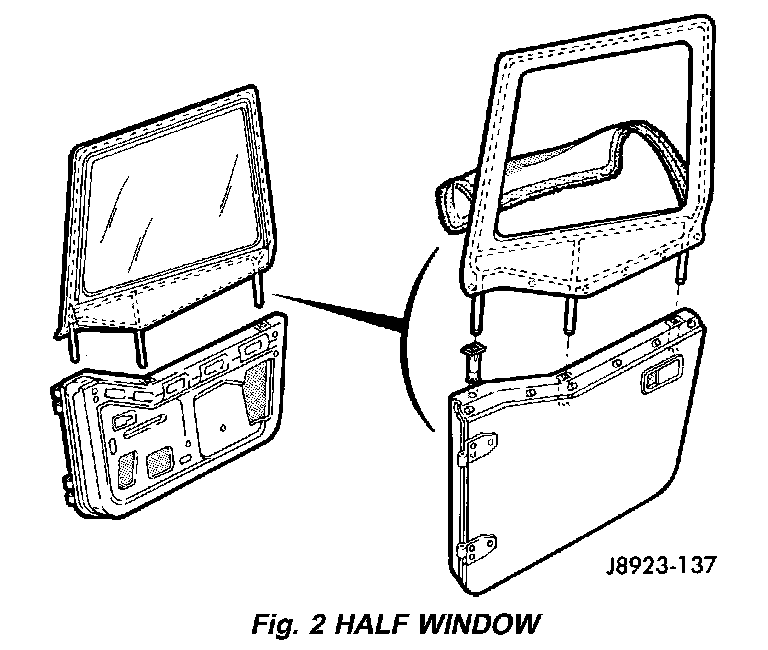

Fig. 2:

2. Grasp the window at both front and rear edges and firmly lift upward (Fig. 2).

INSTALLATION

1. Starting at the most forward alignment pin, position the window alignment pins into the restraint sleeves and push downward until seated.
