Cluster Bezel: Installation

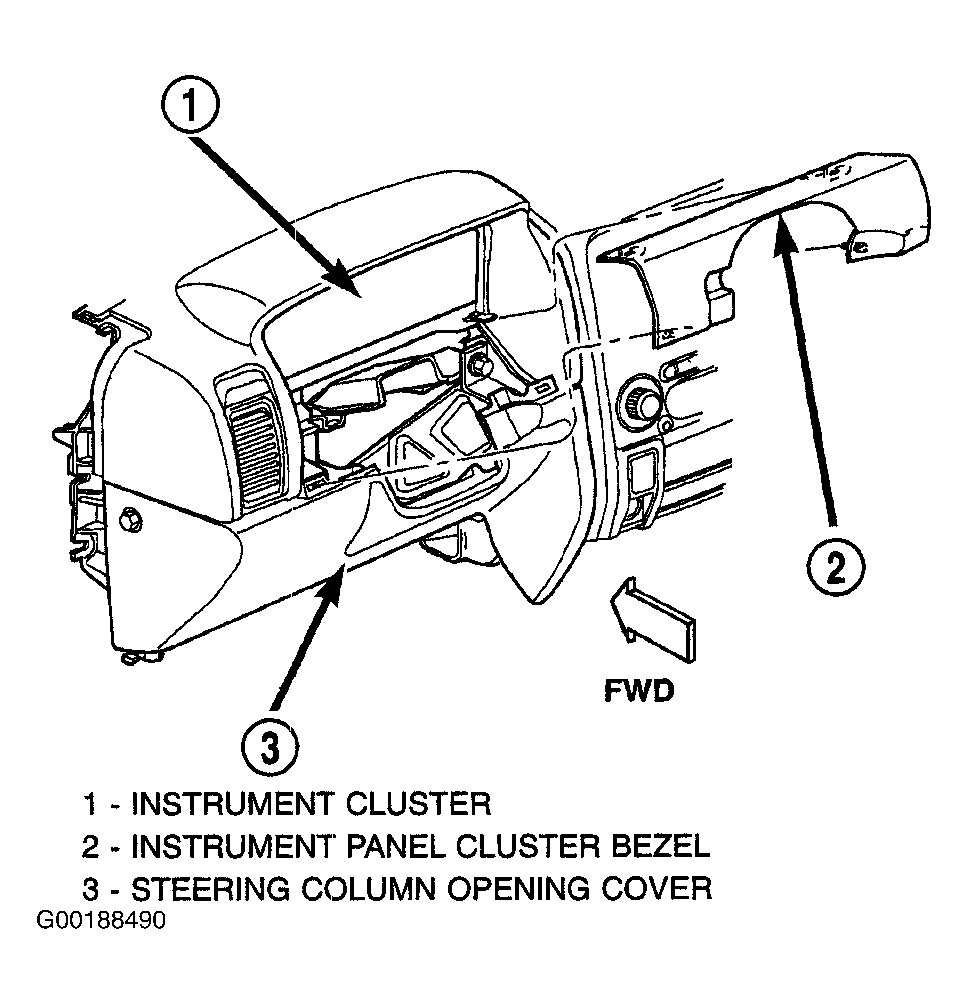

- Position the cluster bezel onto the instrument panel.
- If the vehicle is so equipped, reach behind the cluster bezel to access and reconnect the instrument panel wire harness connector for the headlamp leveling switch to the switch connector receptacle.
- Being certain not to scratch the instrument cluster lens with the two snap clips on the lower edge of the cluster bezel, slide the lower edge of the cluster bezel forward and down over the top of the steering column to position it onto the instrument panel.
- Align the two snap clips on the lower edge of the cluster bezel with their receptacles in the instrument panel.
- Press firmly on the cluster bezel over each of the lower snap clip locations until each of the snap clips is fully engaged in its receptacle.
- Align the two receptacles on the upper edge of the cluster bezel with the snap clips on the instrument panel.
- Press firmly on the cluster bezel over each of the upper snap clip locations until each of the snap clips is fully engaged in its receptacle.
- Reconnect the battery negative cable.
Courtesy of DAIMLERCHRYSLER CORPORATION
