Test No. 8 - "Upstream" Solenoid Test

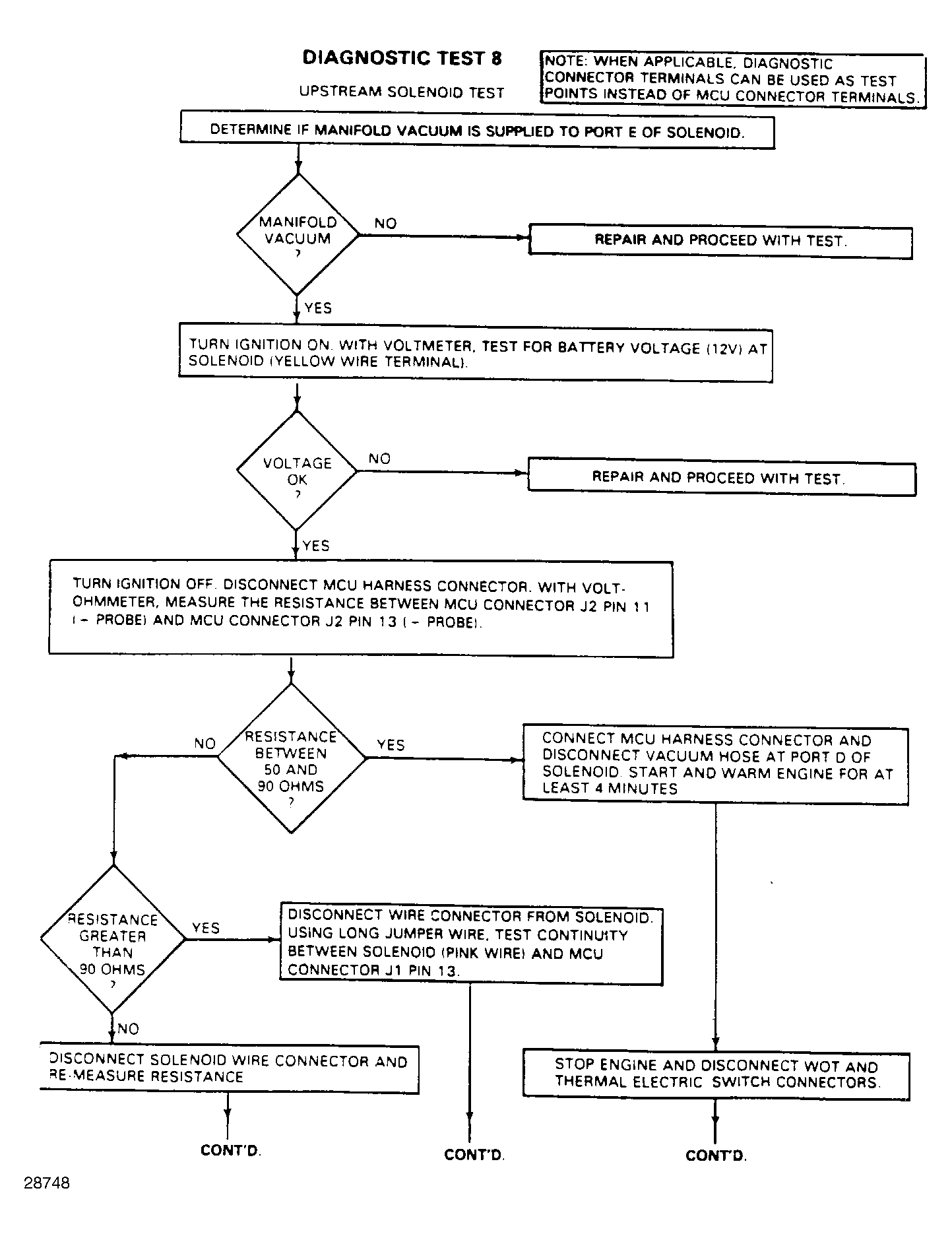

Fig 1: Test No. 8, "Upstream" Solenoid Test (1 of 2)

G28748

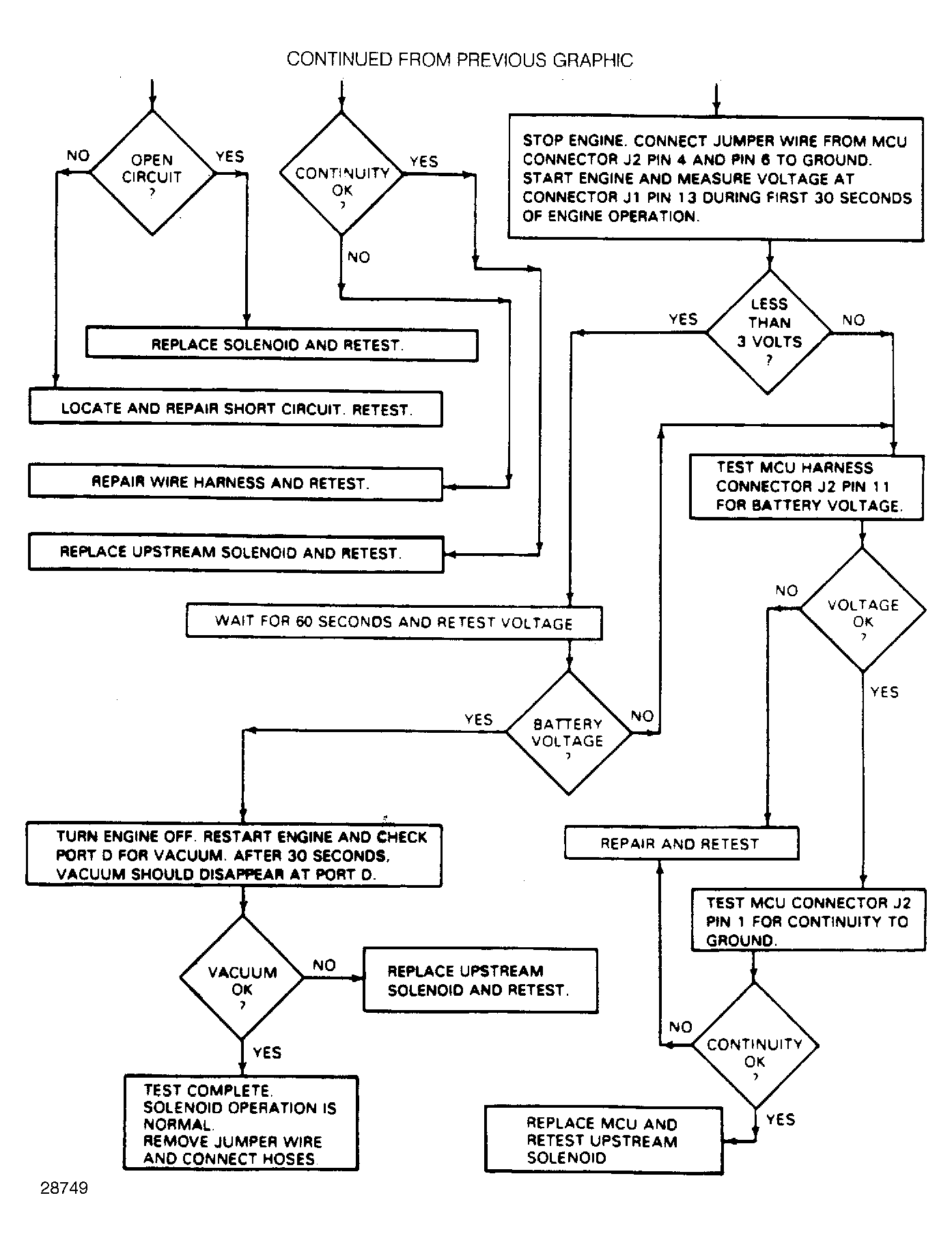

Fig 2: Test No. 8, "Upstream" Solenoid Test (2 of 2)

G28749

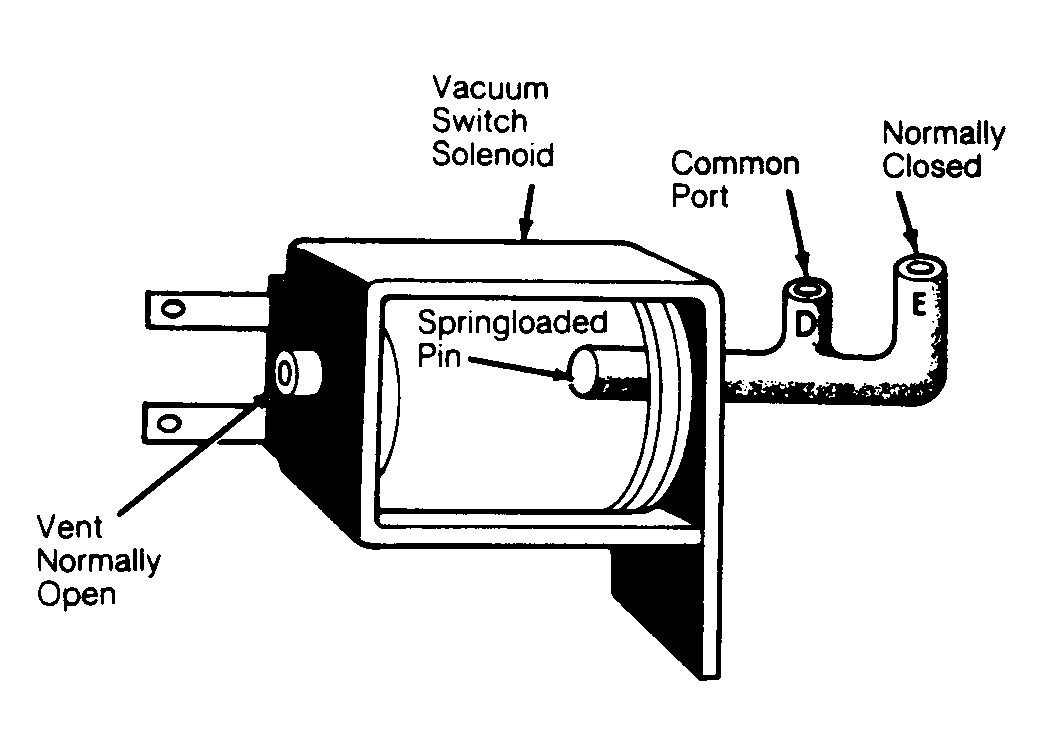

Fig 3: View of "Upstream/Downstream" Solenoid

G113150
