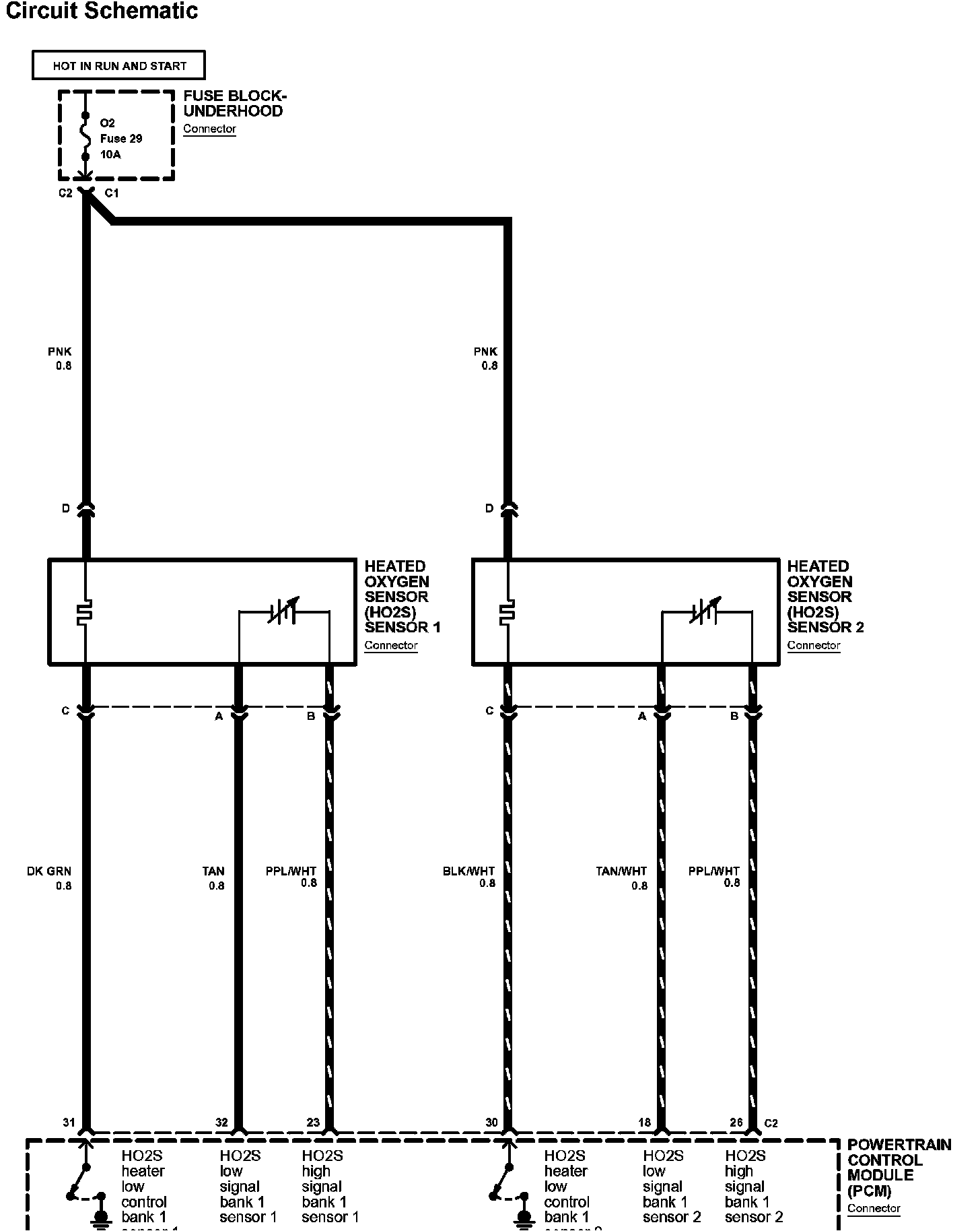

Diagram 23-9

Diagram 23-9:

Next Diagram Diagram 23-10


Previous Diagram Diagram 23-8


Diagrams: Other diagrams referred to by number within these diagrams can be found at Diagrams by Number. Diagrams By Number


Connector Views: Connector terminal views for the connectors shown within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
