Diagnostic Procedure

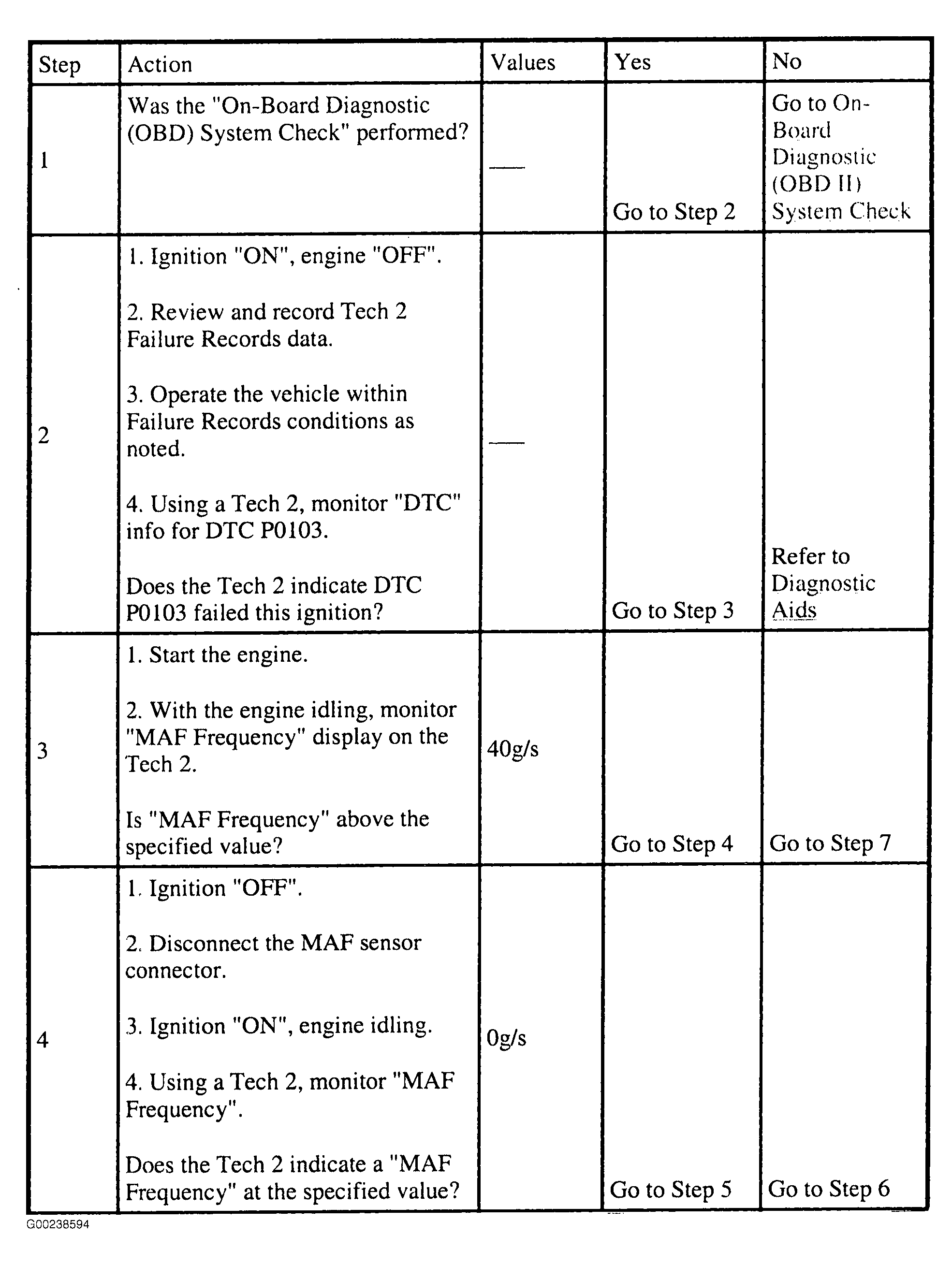

Fig 1: DTC P0103: MAF Sensor Circuit - High Frequency (Steps 1-4)
G00238594Courtesy of ISUZU MOTOR CO.
Fig 2: DTC P0103: MAF Sensor Circuit - High Frequency (Steps 5-8)
G00238595Courtesy of ISUZU MOTOR CO.
