Chart 7: Transfer Does Not Change To Low From High

TRANSFER NOT CHANGE TO LOW FROM HIGH

Chart 7	The Transfer Does Not Change To Low From High
Function of circuit	___
Fail condition	When the TOD switch is selected to the 4L position, the transfer does not change to the low position. (The transfer stays neutral and the vehicle does not run.)

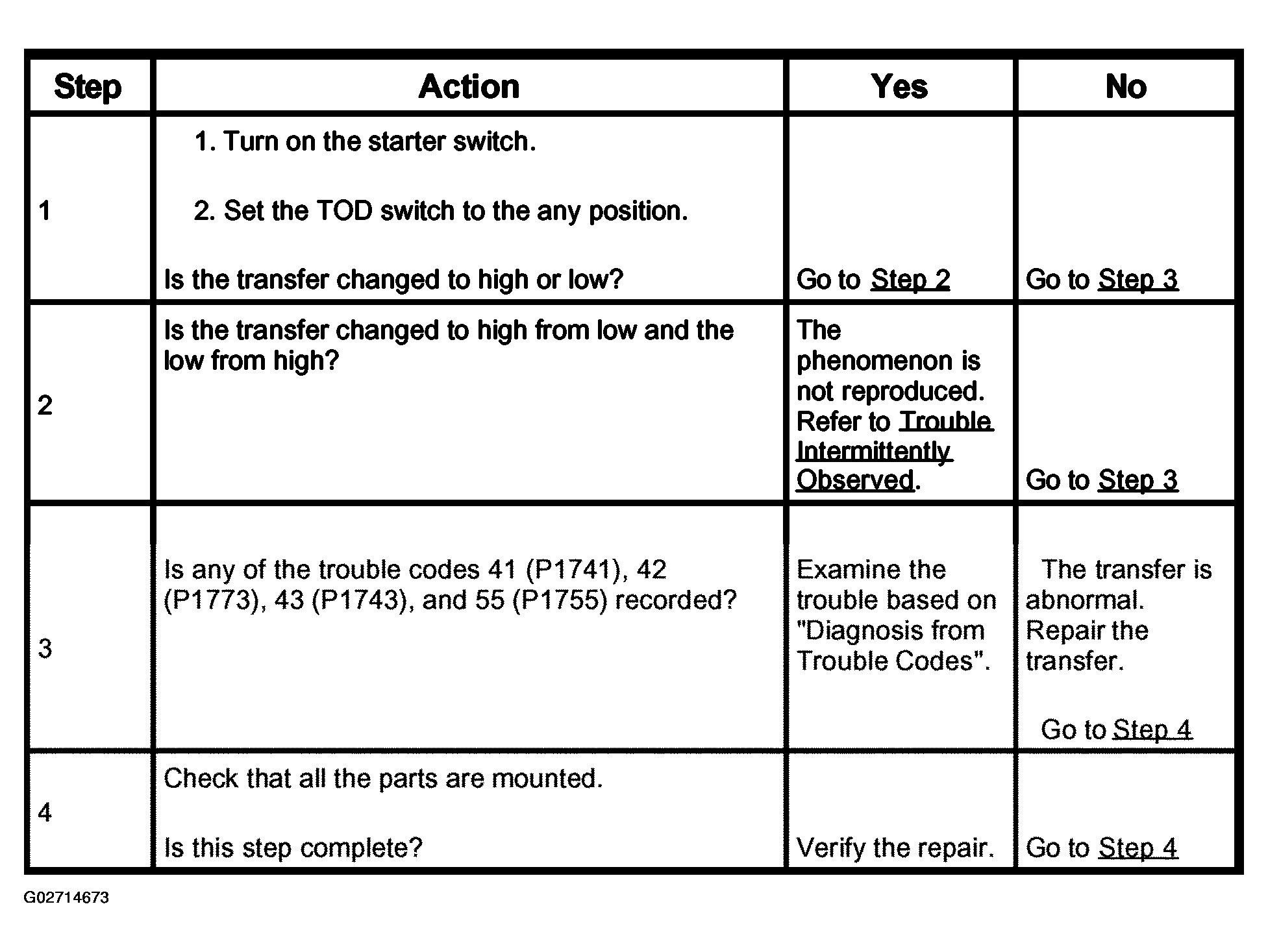

Fig 1: Transfer Changed From High To Low Diagnostic Procedure Chart

Courtesy of ISUZU MOTOR CO.
