Symptom Table 2

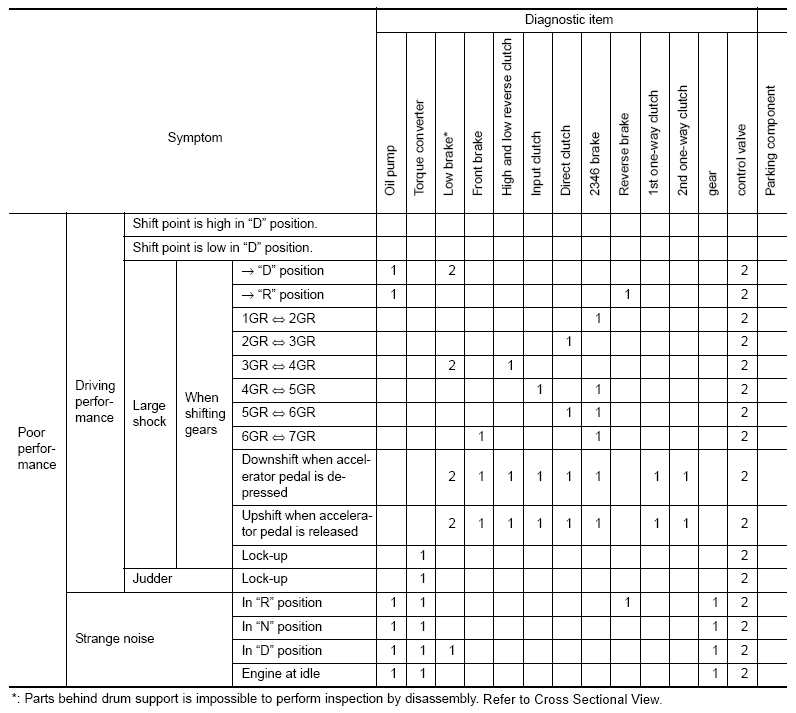

Fig 1: System Symptoms Chart 2 (1 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

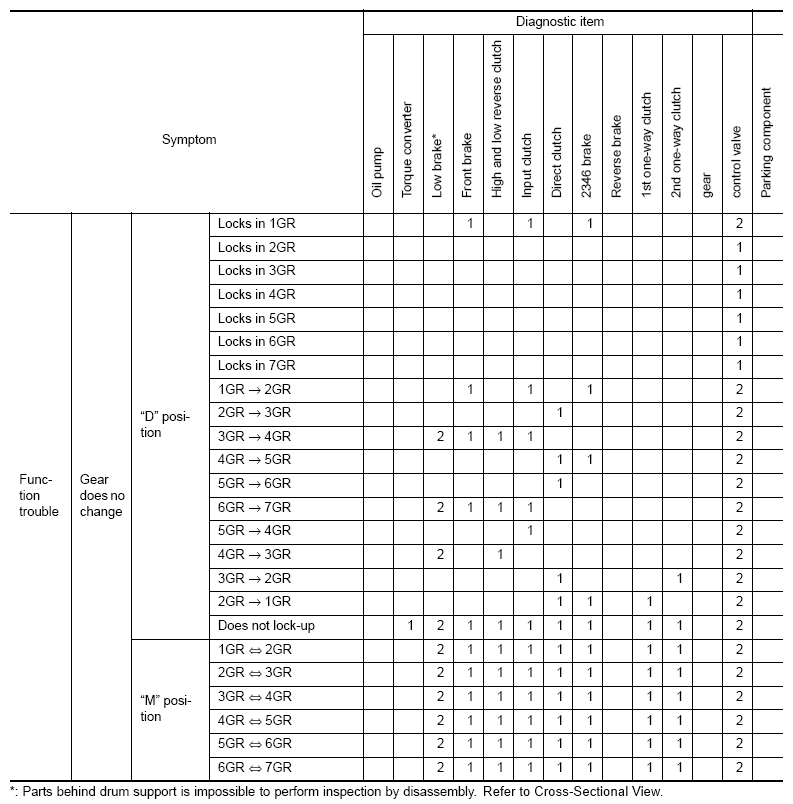

Fig 2: System Symptoms Chart 2 (2 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

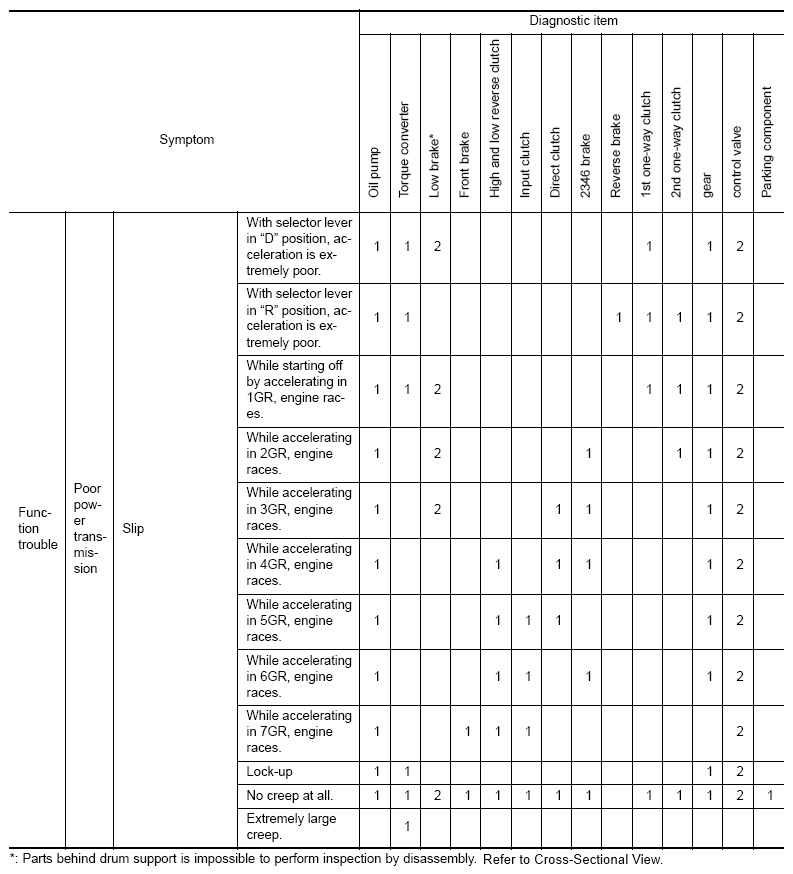

Fig 3: System Symptoms Chart 2 (3 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

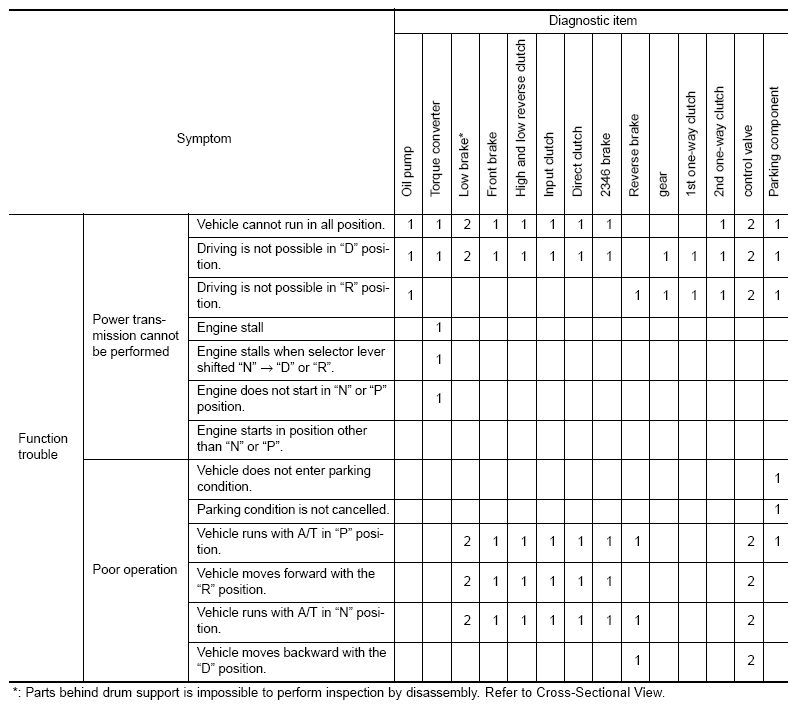

Fig 4: System Symptoms Chart 2 (4 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

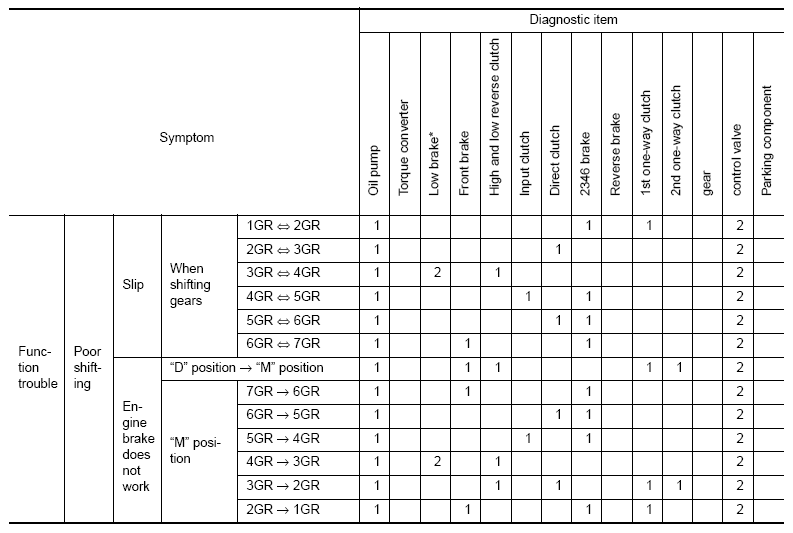

Fig 5: System Symptoms Chart 2 (5 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
