VQ37VHR: Exploded View: Disassembly

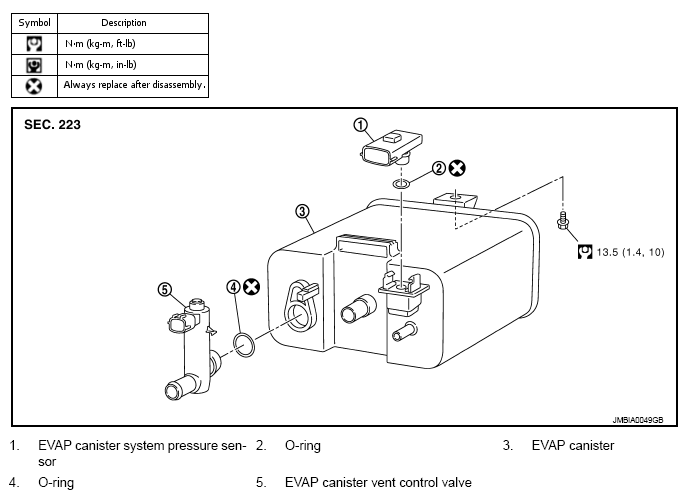

Fig 1: Disassembled View Of EVAP Canister With Torque Specifications - VQ37VHR
G09001653Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "CONTENTS " for symbols not described on the above.
