Removal and Installation: Removal

1. Shift the selector lever to "N" position.
2. Remove knob cover (A) below selector lever downward.
3. Pull lock pin (1) out of selector lever knob (2).
4. Remove selector lever knob.
5. Remove center console assembly. Refer to "REMOVAL AND INSTALLATION ".
   CAUTION: When disconnecting connector from shift position switch, never twist or apply an excessive load to the connector.
6. Remove cluster lid C lower. Refer to "REMOVAL AND INSTALLATION ".
7. Disconnect A/T shift selector connector and main harness from A/T shift selector assembly.

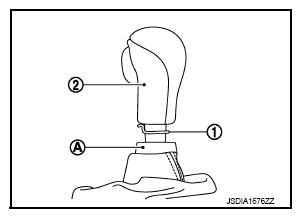

   Fig 1: Identifying Knob Cover, Selector Lever Knob And Lock Pin

   Courtesy of NISSAN MOTOR CO., U.S.A.
8. Shift the selector lever to "P" position.
9. Remove control cable from A/T shift selector assembly. Refer to "REMOVAL AND INSTALLATION ".
10. Remove A/T shift selector assembly.

INSTALLATION

Note the following, and install in the reverse order of removal.

• When installing control cable (1) to A/T shift selector assembly (2), check that control cable is fully pressed in with the ribbed (A) surface facing upward.
• Refer to the followings when installing the selector lever knob to the A/T shift selector assembly.

1. Install the lock pin to the selector lever knob.
2. Insert the shift lever knob into the shift lever until it clicks.
   CAUTION:

   • Install it straight, and never tap or apply any shock to install it.
   • Never press selector button.

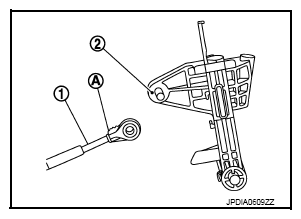

     Fig 2: Installing Control Cable To A/T Shift Selector Assembly

     Courtesy of NISSAN MOTOR CO., U.S.A.
