Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Infiniti M56 and 2013 Infiniti M37. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery cable from the negative terminal.
  2. Remove the cowl top cover (RH). Refer to "REMOVAL AND INSTALLATION ".
  3. Pull up the IPDM E/R assembly while pressing the pawls (A) on the back of the IPDM E/R cover B (1).

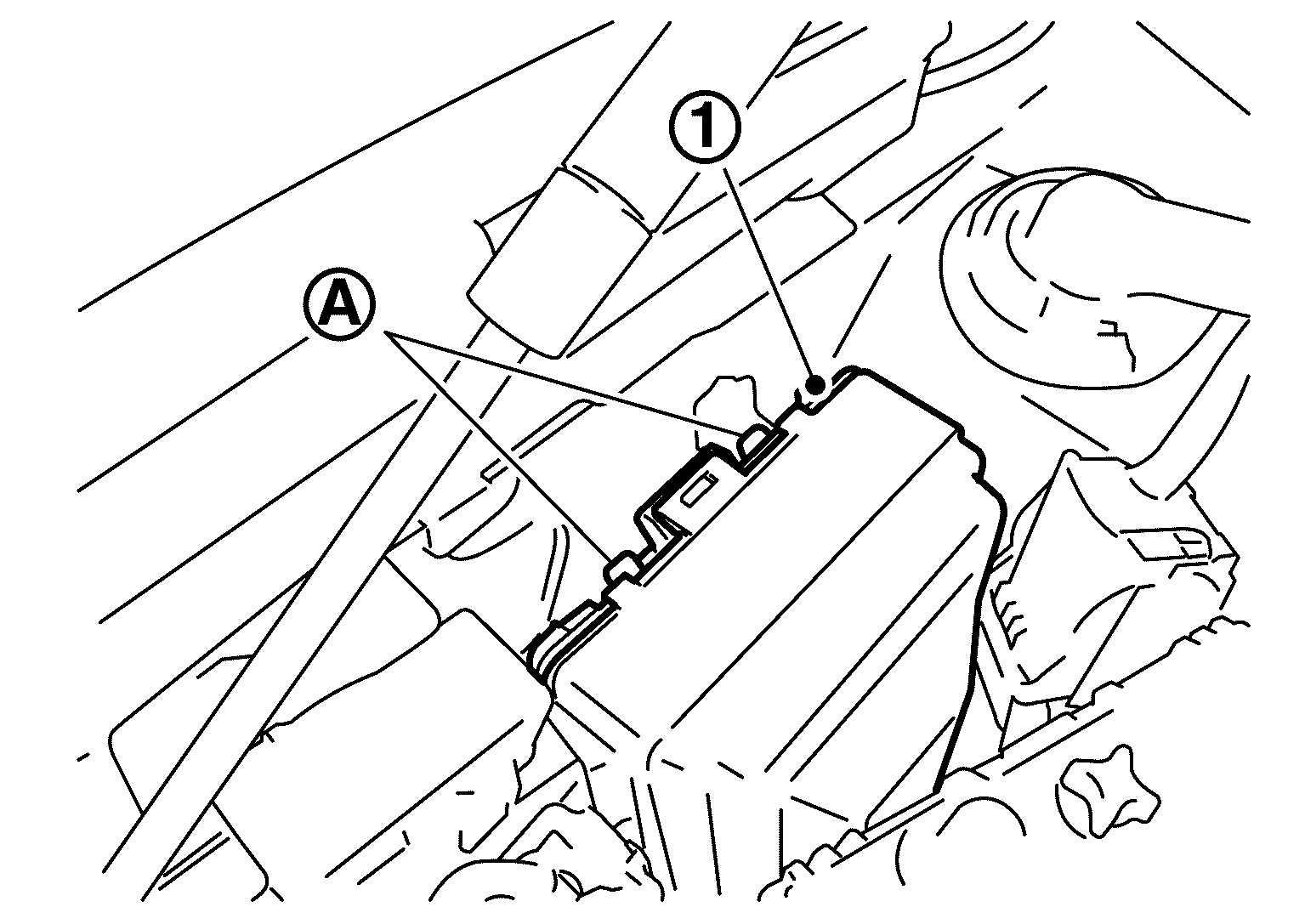

    Fig 1: Identifying IPDM E/R Cover B And Pawls
    G04889515Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove the IPDM E/R cover A while pressing the pawls (A) at the lower end of the IPDM E/R cover A (1).
  5. Disconnect the harness connector and remove the IPDM E/R (2).

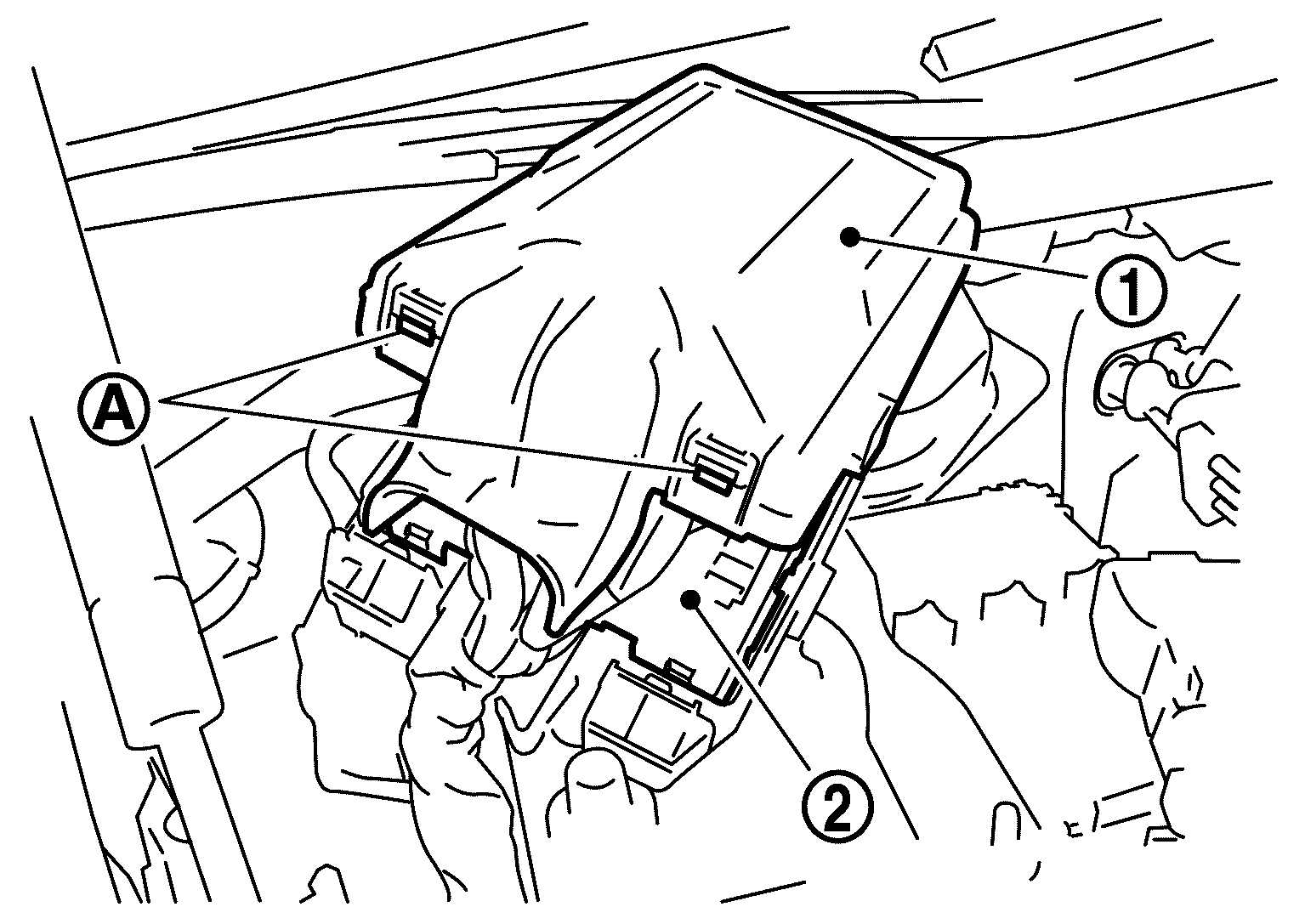

    Fig 2: Identifying IPDM E/R, Cover A And Pawls
    G04889516Courtesy of NISSAN NORTH AMERICA, INC.
