Repair Procedures: Replacement

CAUTION:

Put on gloves to prevent hand injuries.

Information

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

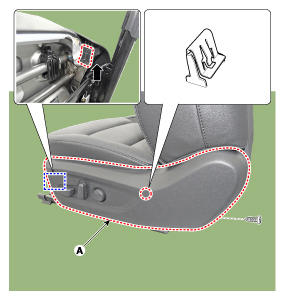

Remove the front seat outer shield cover (A) by pulling forward in the direction of the arrow using screw driver or remover.

Fig 1: Removing Front Seat Outer Shield Cover
Disconnect the front seat power switch connector (A).

Fig 2: Locating Front Seat Power Switch Connector
To install, reverse the removal procedure.
Information
- Make sure the connector is plugged in properly.
- Replace any damaged clips (or pin-type retainers).
