Power Circuit Inspection

■ Check voltage

1. IG "OFF" and disconnect PCSV connector.
2. IG "ON".
3. Measure voltage between control terminal of PCSV harness connector and chassis ground.

   Specification:  B+

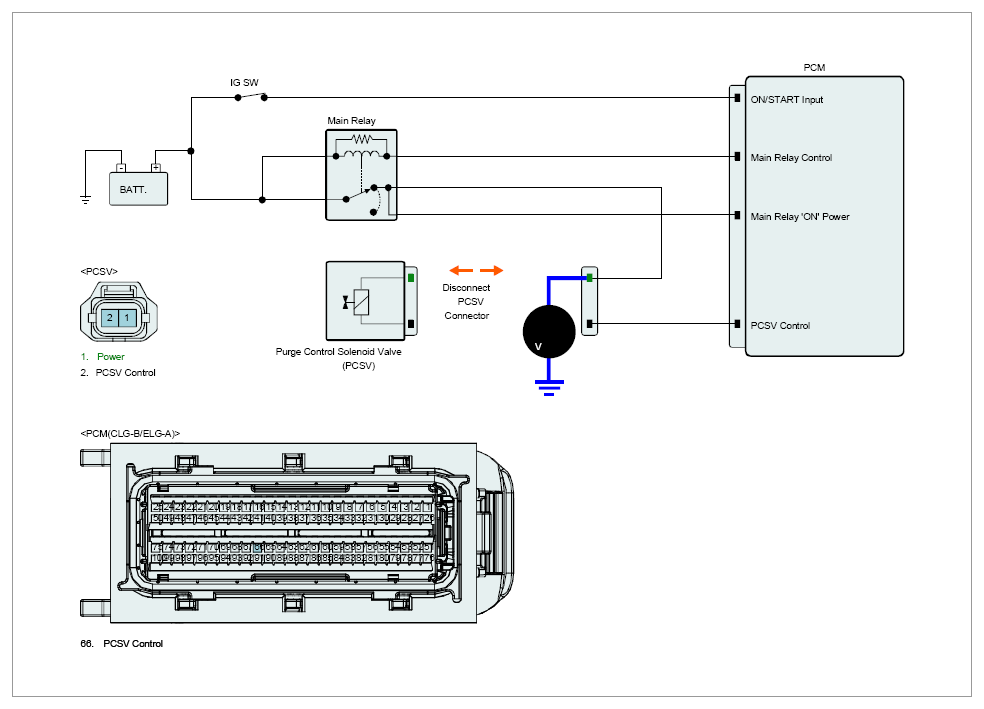

   Fig 1: Measuring Voltage Between Control Terminal Of PCSV Harness Connector And Chassis Ground

   Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured voltage within specification?

   YES

   • Go to "CONTROL CIRCUIT INSPECTION " procedure.

   NO

   • Repair open or short to ground in harness, and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
