Repair Procedures: Removal

Drain the coolant.
(Refer to "COOLANT ")
Remove the air cleaner assembly and air duct.
(Refer to "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to "BATTERY ")
Remove the under cover (A).
Tightening torque:

7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)

Fig 1: Identifying Engine Electrical System Under Cover
Courtesy of HYUNDAI MOTOR AMERICA

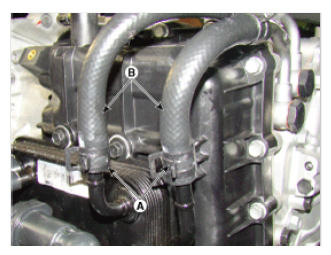

Disconnect the coolant hose (B) after removing the coolant hose clamp (A).

Fig 2: Disconnecting Coolant Hose After Removing Coolant Hose Clamp
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the hose (B) after removing the automatic transaxle fluid cooler hose clamp (A).

Fig 3: Identifying Automatic Transaxle Fluid Cooler Hose And Clamp
Courtesy of HYUNDAI MOTOR AMERICA

CAUTION: When hose & pipe assembly
Align marking of pipe (B), marking of hose (A), and matching color each other.

Fig 4: Identifying Marking Of Pipe And Marking Of Hose
Courtesy of HYUNDAI MOTOR AMERICA
Remove the ATF Warmer (A).
Tightening torque:

(A) 7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)

Fig 5: Identifying ATF Warmer And Mounting Bolt
Courtesy of HYUNDAI MOTOR AMERICA
