Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON" & Engine "ON".
  3. Select "Current Data" mode and monitor "Oil temperature sensor" parameter.
    Fig 1: Display - Normal Data
    G08833147Courtesy of HYUNDAI MOTOR AMERICA

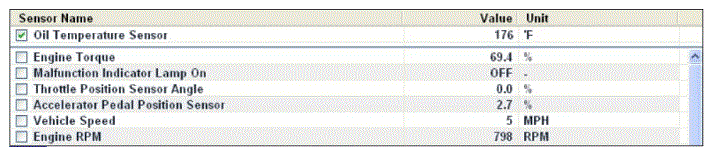

    Fig 2: Display - Open Data
    G08833148Courtesy of HYUNDAI MOTOR AMERICA
  4. Is the Oil temperature sensor within specification?

    YES

    Fault is intermittent caused by poor contact of PCM/TCM and DTC was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
