Multipurpose Check Connector End View (E45)

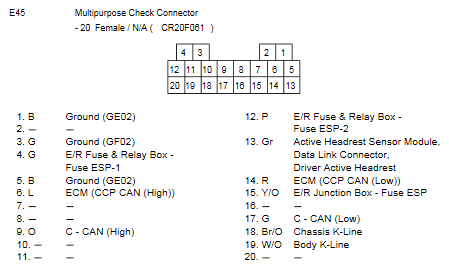

Fig 1: Multipurpose Check Connector End View (E45)

G10734001

Courtesy of HYUNDAI MOTOR AMERICA
