General Information: Specification

VOLTAGE SPECIFICATIONS

Pressure  -3.75 kPa (-1.10 inHg) 0 kPa (0 inHg) 1.25 kPa (0.37 inHg)
FTPS output voltage  4.5 V 1.5 V 0.5 V

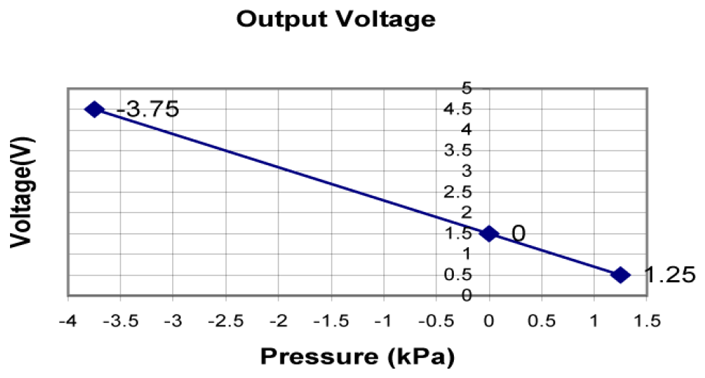

Fig 1: Fuel Tank Pressure Sensor Output Voltage Graph
G06871825Courtesy of HYUNDAI MOTOR CO.
