Rear Console Switch (5:5 Seat)

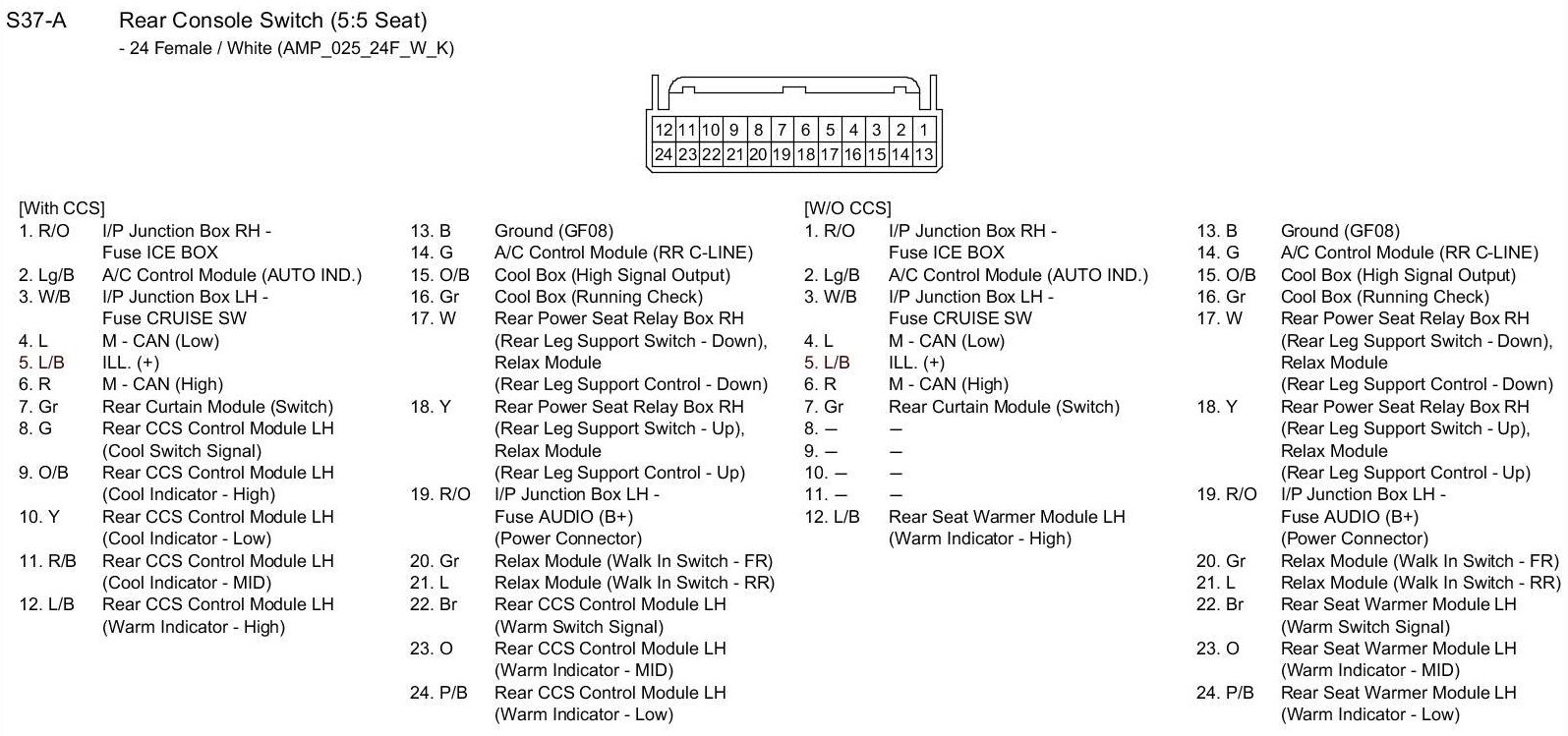

S37-A Rear Console Switch (5:5 Seat):

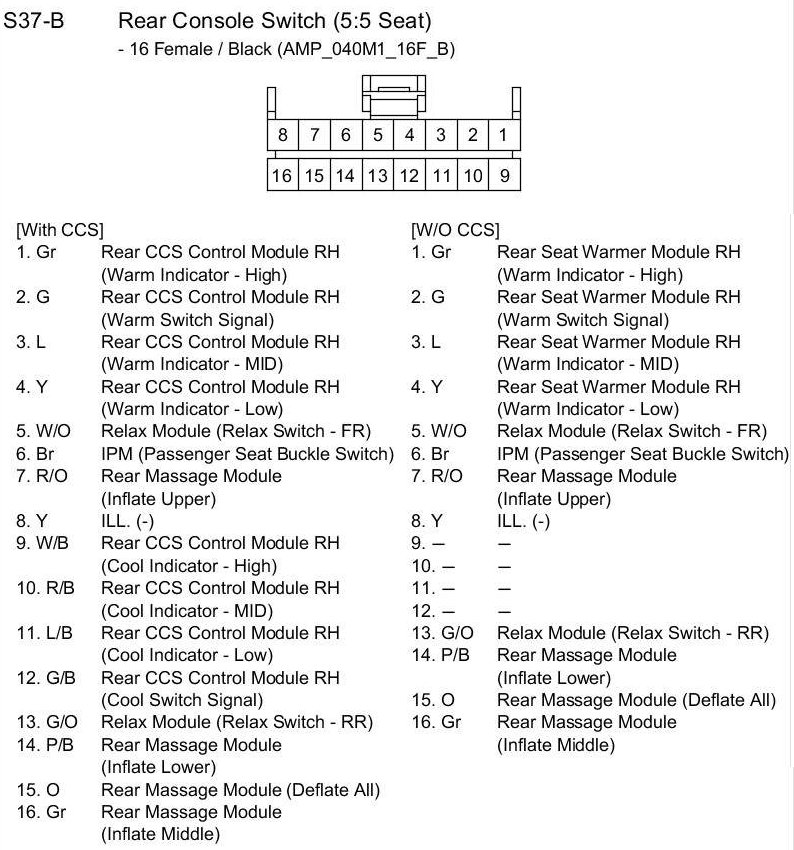

S37-B Rear Console Switch (5:5 Seat):
