Seat Assembly Replacement

Replacement

Seat Assembly Replacement

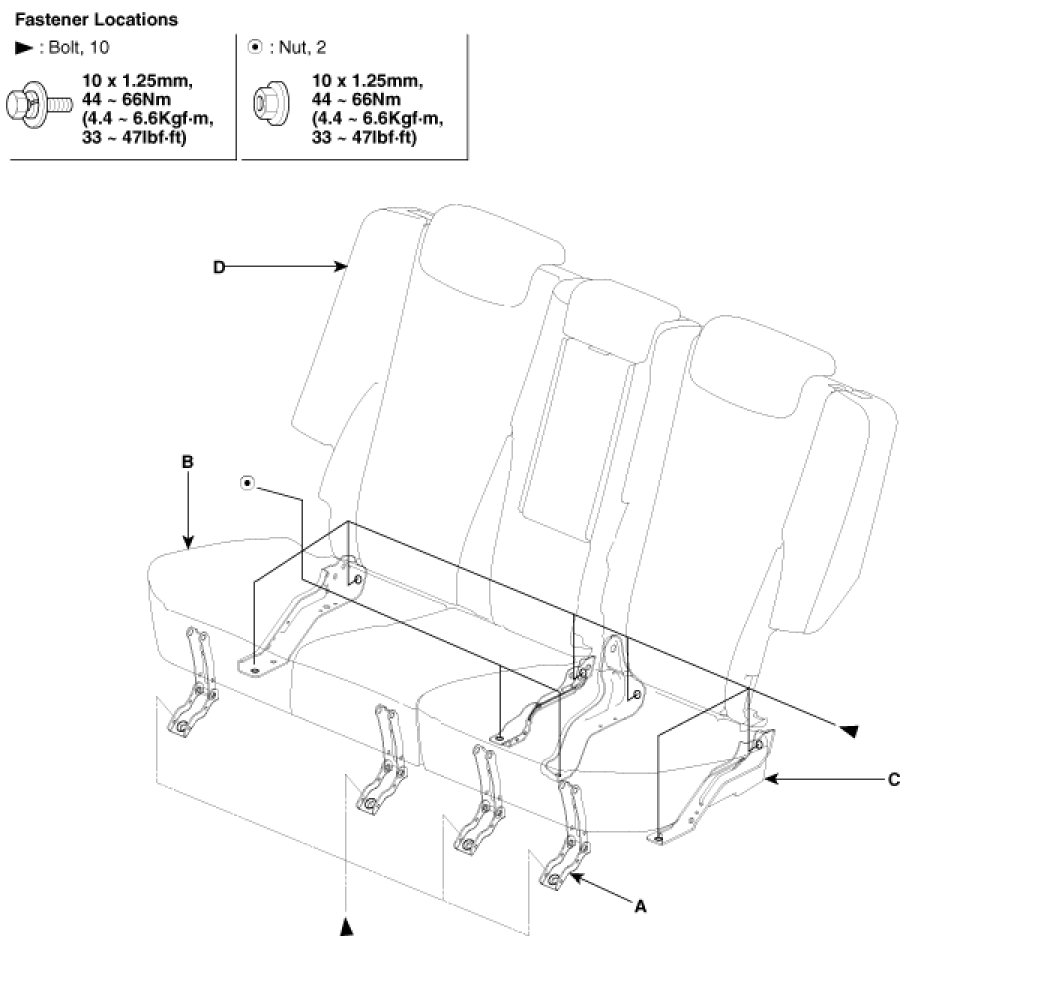

1. After removing the cushion frame hinge cover (A), loosen the mounting bolts.Fold the cushion (B).
2. Loosen the recliner hinge (C) mounting nut and bolt, then rear seat assembly (D).
3. Installation is the reverse of removal.

NOTE:
SEAT MOUNTING BOLT AND NUT INSTALLATION PROCEDURE.
- Tighten temporarily in the order of nut and bolt on the front of recliner hinge installation part.
- After completely tightening completely the bolt on the back of the recliner hinge installation part, tighten the bolt on the front of it completely.
- Setting down the seat cushion, tighten the mounting bolt of the cushion frame hinge.
- Check if reclining the seat and folding seat back operate smoothly.
