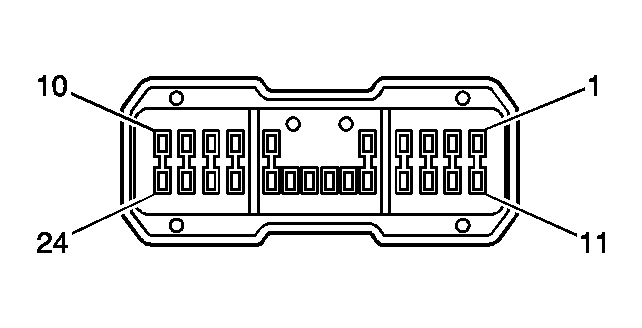

C327 Driver Seat Harness Connector End View

Courtesy of GENERAL MOTORS CORP.				Courtesy of GENERAL MOTORS CORP.
Connector Part Information		6098-1374 24-Way F (LT BLU)		Connector Part Information		6098-1371 24-Way M (LT BLU)
Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	WHT	5287	Voltage Reference	1	WHT	5287	Voltage Reference
2	LT BLU	2435	Low Reference - w/KA7	2	LT BLU	2435	Low Reference - w/KA7
3	YEL	1063	Driver Seat Lumbar Horizontal Position Sensor Signal	3	YEL	1063	Driver Seat Lumbar Horizontal Position Sensor Signal
4	PPL	5700	Driver Seat Torso Bolster Position Sensor Signal	4	PPL	5700	Driver Seat Torso Bolster Position Sensor Signal
5	-	-	Not Used	5	-	-	Not Used
6	BRN/WHT	5288	Low Reference	6	BRN/WHT	5288	Low Reference
7	ORN	1540	Battery Positive Voltage	7	ORN	1540	Battery Positive Voltage
8	BRN/WHT	1048	SCM (Seat) Class 2 Serial Data	8	BRN/WHT	1048	SCM (Seat) Class 2 Serial Data
9	DK GRN	1518	Power Seat Front Vertical Up Switch Signal	9	DK GRN	1518	Power Seat Front Vertical Up Switch Signal
10	DK BLU	1520	Power Seat Front Vertical Down Switch Signal	10	DK BLU	1520	Power Seat Front Vertical Down Switch Signal
11	GRY/BLK	1269	Power Seat Recline Forward Switch Signal	11	GRY/BLK	1269	Power Seat Recline Forward Switch Signal
12	DK GRN/WHT	1270	Power Seat Recline Rearward Switch Signal	12	DK GRN/WHT	1270	Power Seat Recline Rearward Switch Signal
13	LT GRN	1523	Power Seat Horizontal Rearward Switch Signal	13	LT GRN	1523	Power Seat Horizontal Rearward Switch Signal
14	TAN	1522	Power Seat Horizontal Forward Switch Signal	14	TAN	1522	Power Seat Horizontal Forward Switch Signal
15	YEL	2407	Driver Seat Lumbar Motor Forward Switch Signal	15	YEL	2407	Driver Seat Lumbar Motor Forward Switch Signal
16	TAN	2408	Driver Seat Lumbar Motor Rearward Switch Signal	16	TAN	2408	Driver Seat Lumbar Motor Rearward Switch Signal
17-18	-	-	Not Used	17-18	-	-	Not Used
19	LT BLU	1521	Power Seat Rear Vertical Down Switch Signal	19	LT BLU	1521	Power Seat Rear Vertical Down Switch Signal
20	YEL	1519	Power Seat Rear Vertical Up Switch Signal	20	YEL	1519	Power Seat Rear Vertical Up Switch Signal
21	WHT/RED	5701	Driver Seat Torso Bolster In Switch Signal	20	WHT/RED	5701	Driver Seat Torso Bolster In Switch Signal
22	GRY/RED	5702	Driver Seat Torso Bolster Out Switch Signal	22	GRY/RED	5702	Driver Seat Torso Bolster Out Switch Signal
23	DK BLU	2435	Passenger Heated Seat Back Temperature Signal - w/KA7	23	DK BLU	2435	Passenger Heated Seat Back Temperature Signal - w/KA7
24	-	-	Not Used	24	-	-	Not Used
