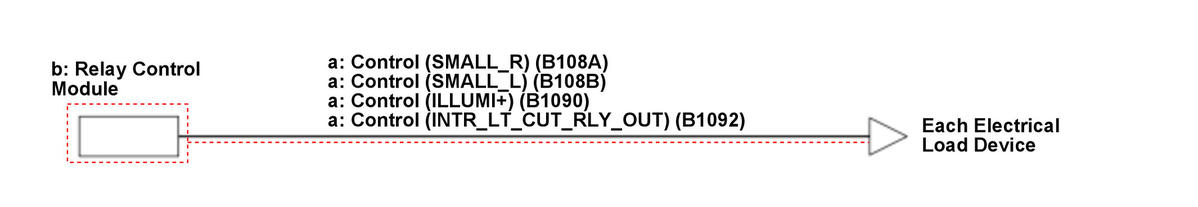

Inspection Outline
- The components to be tested are indicated by a dotted line.
| Inspection Items | Work Items | |
|---|---|---|
| a | External Circuit | Shorted Wire Inspection*
|
| b | Relay Control Module | |
*: Choose the work item based on the stored DTC.
| Inspection Items | Work Items | |
|---|---|---|
| a | External Circuit | Shorted Wire Inspection*
|
| b | Relay Control Module | |
*: Choose the work item based on the stored DTC.
