VTM-4 Control Unit Electrical Connections

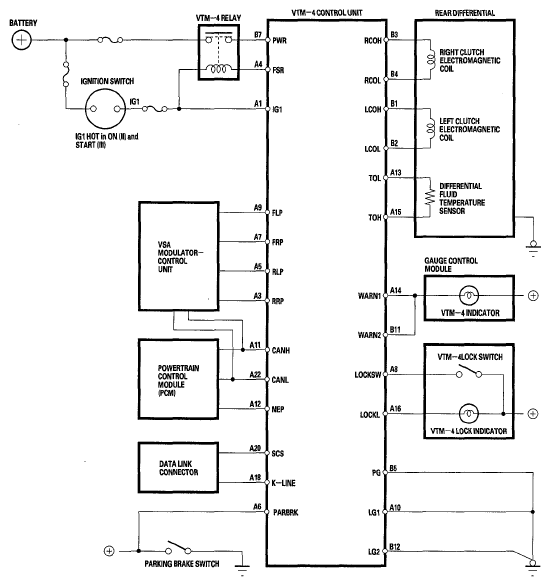

Fig 1: VTM-4 Control Unit Electrical Connections Diagram

G05964827

Courtesy of AMERICAN HONDA MOTOR CO., INC.
