Audio Unit Connector End View (Without Navigation) (View 382)

Connector A

• GRY
• On Audio Wire Harness

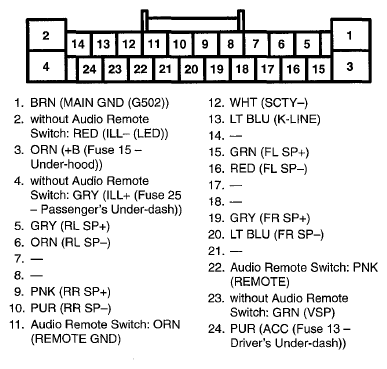

Fig 1: Audio Unit (Without Navigation) Connector Terminals - Connector A (View 382)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector B

• GRY
• On Audio Wire Harness

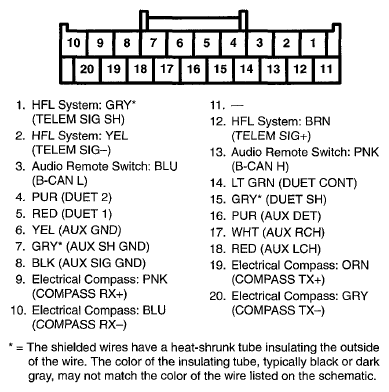

Fig 2: Audio Unit (Without Navigation) Connector Terminals - Connector B (View 382)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector C

• GRY
• On Audio Wire Harness

* = The Shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

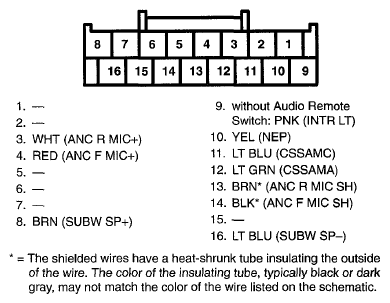

Fig 3: Audio Unit (Without Navigation) Connector Terminals - Connector C (View 382)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector D (USB Adapter)

• WHT
• On Audio Wire Harness

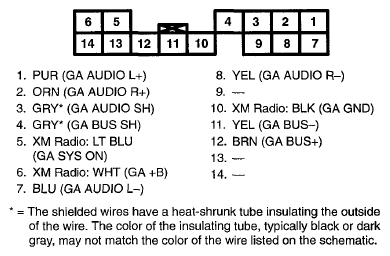

Fig 4: Audio Unit (Without Navigation) Connector Terminals - Connector D USB Adapter (View 382)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

* = The Shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

Connector E (RES)

• GRY
• On Audio Wire Harness

Fig 5: Audio Unit (Without Navigation) Connector Terminals - Connector E (View 382)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

* = The Shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

Connector F

• GRY
• On AM/FM Antenna Sub-lead

Fig 6: Audio Unit (Without Navigation) Connector Terminals - Connector F (View 382)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
