Home >> Honda >> 2007 >> Element 4WD L4-2.4L >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Turn Signal Lamp >> Diagrams

Turn Signal Lamp: Diagrams

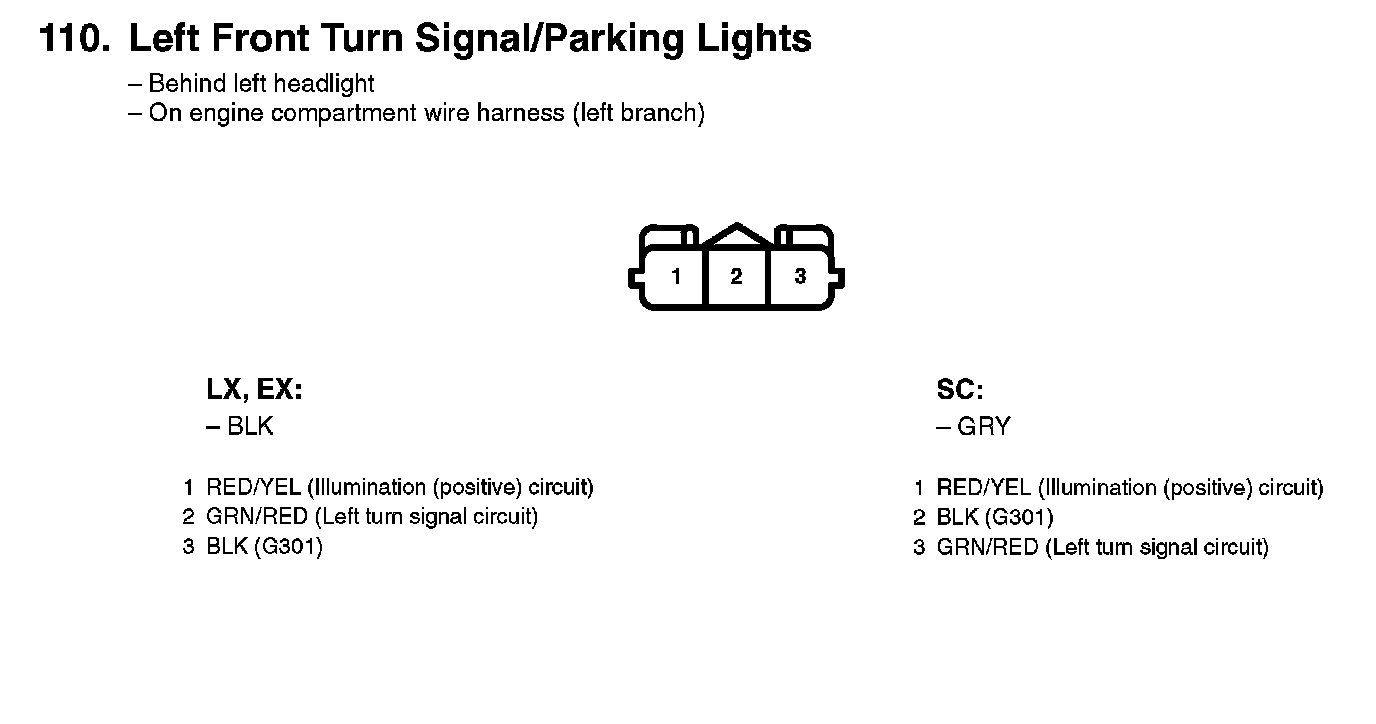

110. Left Front Turn Signal/Parking Lights:

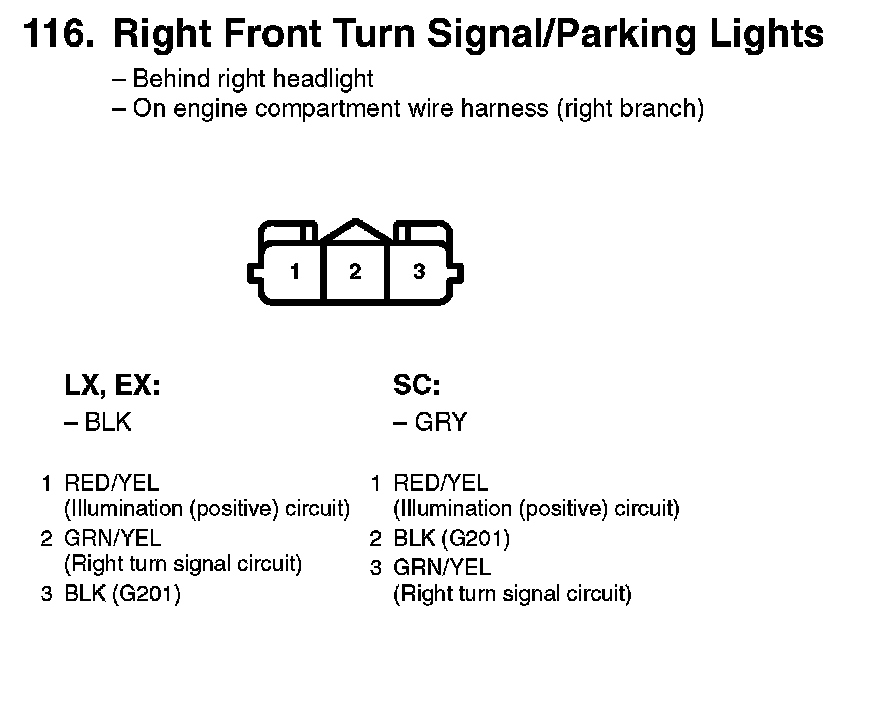

116. Right Front Turn Signal/Parking Lights:
