Home >> Honda >> 2006 >> Pilot 4WD V6-3.5L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Application and ID >> Passenger's Under-dash Fuse/Relay Box

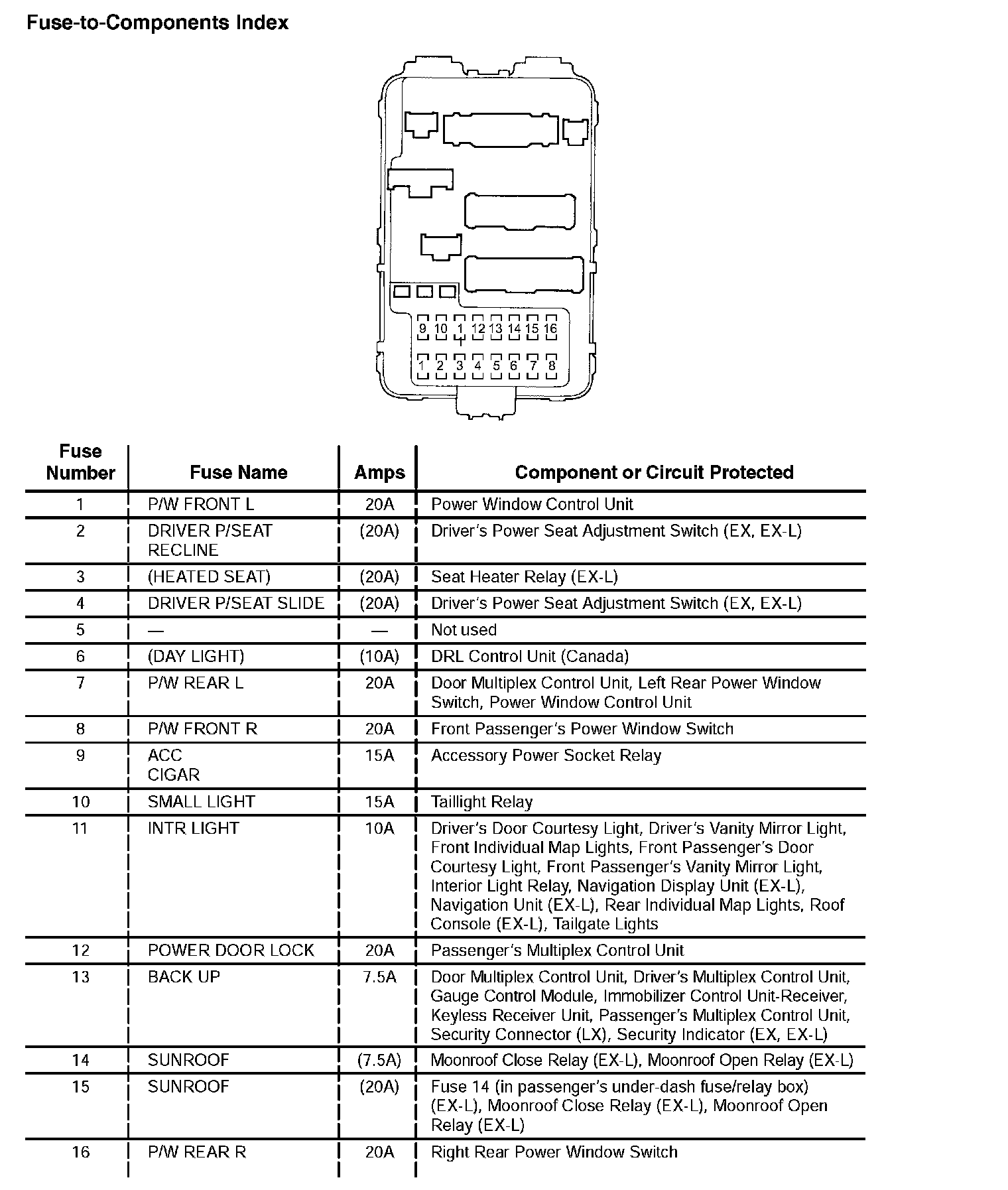

Passenger's Under-dash Fuse/Relay Box

Passenger's Under-dash Fuse/Relay Box:
